On 5/24/2020 5:42 PM, Hubert Miller wrote:
> I have several of the Cannon connectors with the pin pattern used in ARB, ATB, TCS and maybe others.
> But - the " key " is in different locations. I took one apart to see if I could rekey it, but I don't see a way
> to do this. The insert is somehow friction fit inside the connector shell, and I see no practical way to
> rotate the insert. Your verdict ?

Two methods:

1)  Use a drill press with a 3/32" wide hack saw blade or flat file in
the chuck to create a new key slot at the correct angle for the
rekeying.  In essence you will be moving the hack saw blade up and down
until the slot is deep enough for the male key on the phenolic to slide
into the backshell.  Final depth should be about half the thickness of
the backshell.  The only touchy thing about this method is getting the
angle correct, but you can use a flat file edge to correct minor
errors.  I have several backshells in which past owners have made
mutiple hacksaw cuts, so it is certainly doable.

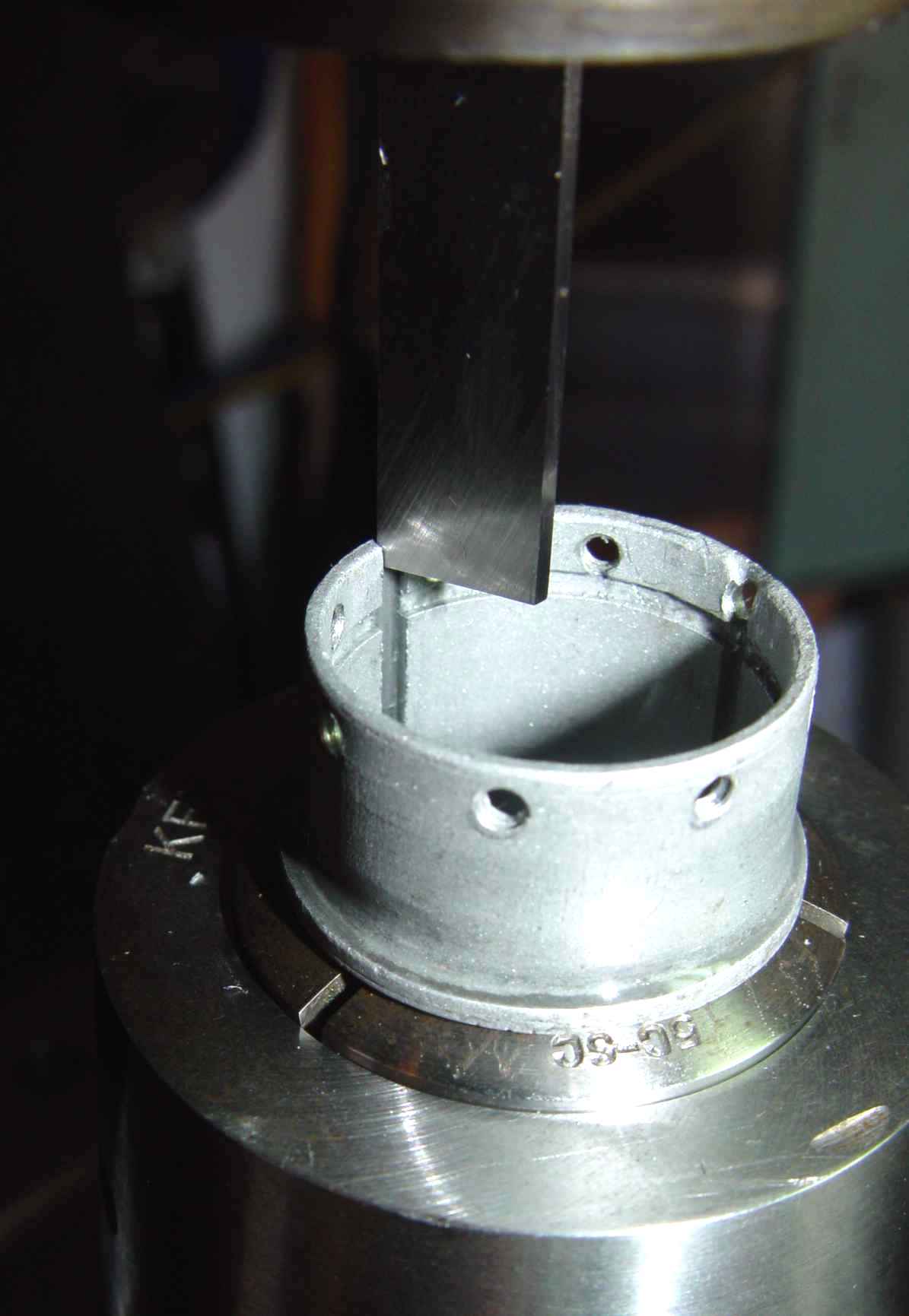

2)  If you have access to a friend with one, you can do the same thing
in a milling machine, with a .093" wide cutoff blade, and rotating
chuck, as shown in the attached photo.  It takes all of 30 seconds in
the soft aluminum.  The photo shows what the goal is for this exercise.

      73,
- Mike  KC4TOS
