[Milsurplus] Dynamotor curiosity

[Robert Downs]

My only comment is that looking at the photo and the rest of his ad, it’s pretty obvious that the seller doesn’t know his market.  DY-34B/ARR-15 would get if nothing else a lot more hits than DM-53.  And it is, after all, no longer usable as a DM-53 other than for parts.



But I have never seen a complete DY-34.  What are these rubber pads mentioned by Mike H?







Robert Downs



From: milsurplus-bounces at mailman.qth.net [mailto:milsurplus-bounces at mailman.qth.net] On Behalf Of Michael Hanz
Sent: Wednesday, March 18, 2020 12:10
To: Jack Antonio; milsurplus at mailman.qth.net
Subject: Re: [Milsurplus] Dynamotor curiosity

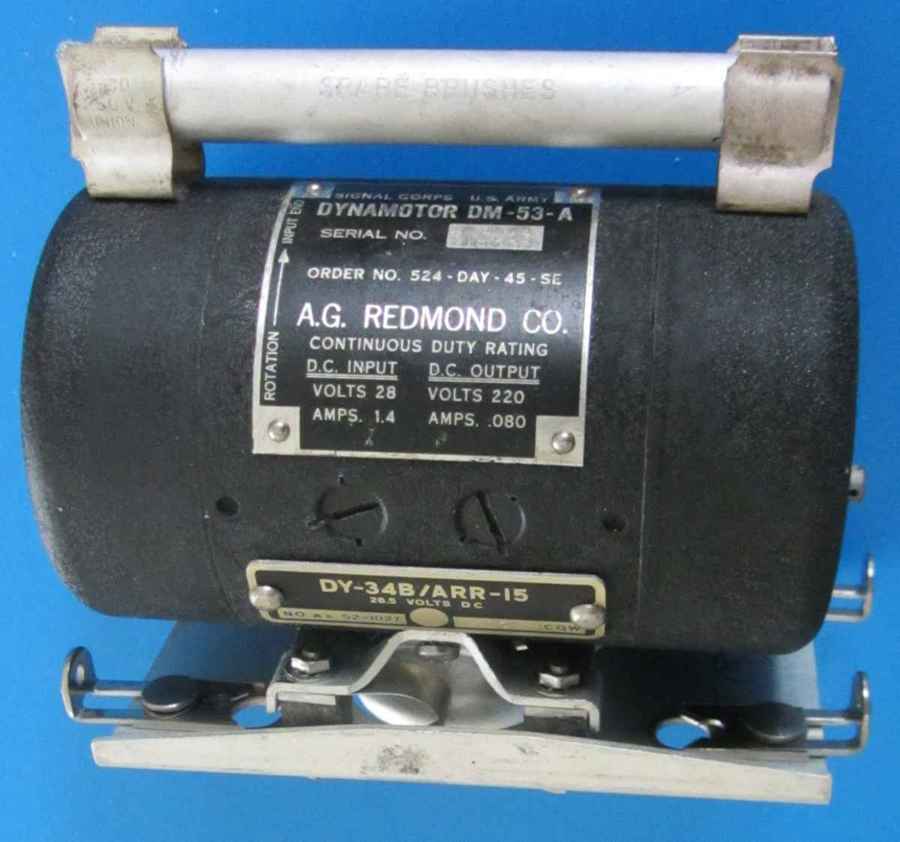

Looking at the dyno photos, that's the way it was originally made, Jack.  See photo below on one of mine.



It's a pity the snap slide base with the four rubber pads is gone, but those small rubber pads are forever prone to detachment over time.  I do have a couple of spare "command set" dyno snap slide baseplates if anyone needs one for an application like this.  I'll even bore out the hole in the middle, for postage.  Rubber pads not included, but you can get the rubber on McMaster-Carr and use a razor blade to cut them out.  That will still leave the eight small metal end plates to fabricate, but that wouldn't be too hard on a lathe.

- Mike  KC4TOS

On 3/18/2020 10:05 AM, Jack Antonio wrote:

eBay item number 114152560578 is listed
as a DM-53 dynamotor, the nameplate for which
is clearly shown in the photos. The DM-53 is the
dynamotor for the BC-733 ILS receiver, which
doesn't have much collector interest(except
for weirdos like myself).

However, it also carries the nameplate
showing it as a DY-34B/ARR-15. And it has
the base and brush holder for the
AN/ARR-15 dynamotor. The unit in the
photo will not fit on a BC-733.

Both nameplates look riveted on, so I
don't think this is a ham hack.

Just wondering if this was maybe a
postwar overhaul of a DY-34 that used
the machine from a DM-53 as a replacement.

Just think it was unusual that it would
carry the original nomenclature plate.

So if anyone needs a dynamotor for their
AN/ARR-15, here you go.
