[Milsurplus] [MMRCG] Series or Parallel Resonant Crystal Oscillator?

W2HX w2hx at w2hx.com
Wed Jan 8 14:24:50 EST 2020


I would say series. I don’t see much in the way of reactive components in parallel to the crystal (other than some filtering for the transistor).

From: MMRCG at groups.io <MMRCG at groups.io> On Behalf Of David Stinson
Sent: Wednesday, January 8, 2020 2:16 PM
To: Boatanchors at mailman <boatanchors at mailman.qth.net>; milsurplus at mailman <milsurplus at mailman.qth.net>
Subject: [MMRCG] Series or Parallel Resonant Crystal Oscillator?

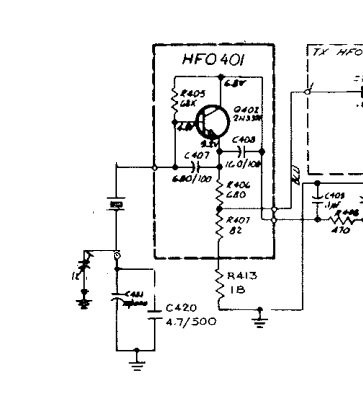

How can you tell if this oscillator is designed
for series- or parallel- resonant crystals?
[cid:image001.jpg at 01D5C62F.5FF9B2E0]
