[Milsurplus] MAK Transmitter osc

[hwhall at compuserve.com]

<ahem> Brilliant!!!

WayneWB4OGM

-----Original Message-----
From: B. Smith <smithab11 at comcast.net>
To: milsurplus <milsurplus at mailman.qth.net>
Sent: Mon, Feb 17, 2020 8:17 pm
Subject: Re: [Milsurplus] MAK Transmitter osc

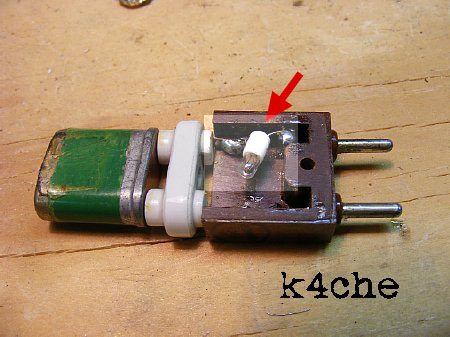

  And anytime you are experimenting with feedback on a crystal oscillator you might be playing "Crystal Roulette" A simple crystal current checker can be fabricated. I usually use a 30-40 ma bulb and prefer that it not glow at all in the circuit. Those Chinese crystals may not survive in high current 30-40 ma circuits.
 73 k4che


 On 2/17/2020 6:08 PM, David Stinson wrote:

Ken's suggestion is a good one, but don't "go overboard."
 This kind of feedback directly increases crystal current.
 "A little dab will do ya..."

 On 2/17/2020 5:05 PM, Kenneth G. Gordon wrote:

Ray:
 Viewing the schematic, the plate output tuning network provides the phase-shift necessary
 to sustain oscillations, IFF the crystal is very active. The capacitor at the bottom of the plate
 tuning network is connected to the cathode, then cathode being the "common" between the
 grid and the plate.

 If that was my rig, I would simply connect a SMALL capacitance, a "gimmick" capacitor,
 directly from the plate to the grid

 You won't need much. 1 to 2 pfd and not more than, say, 5 pfd, should be enough to get any
 crystal working.
