[Milsurplus] GO-9 Project: Why the Resistor?

[David Stinson]

Dear Smart People:

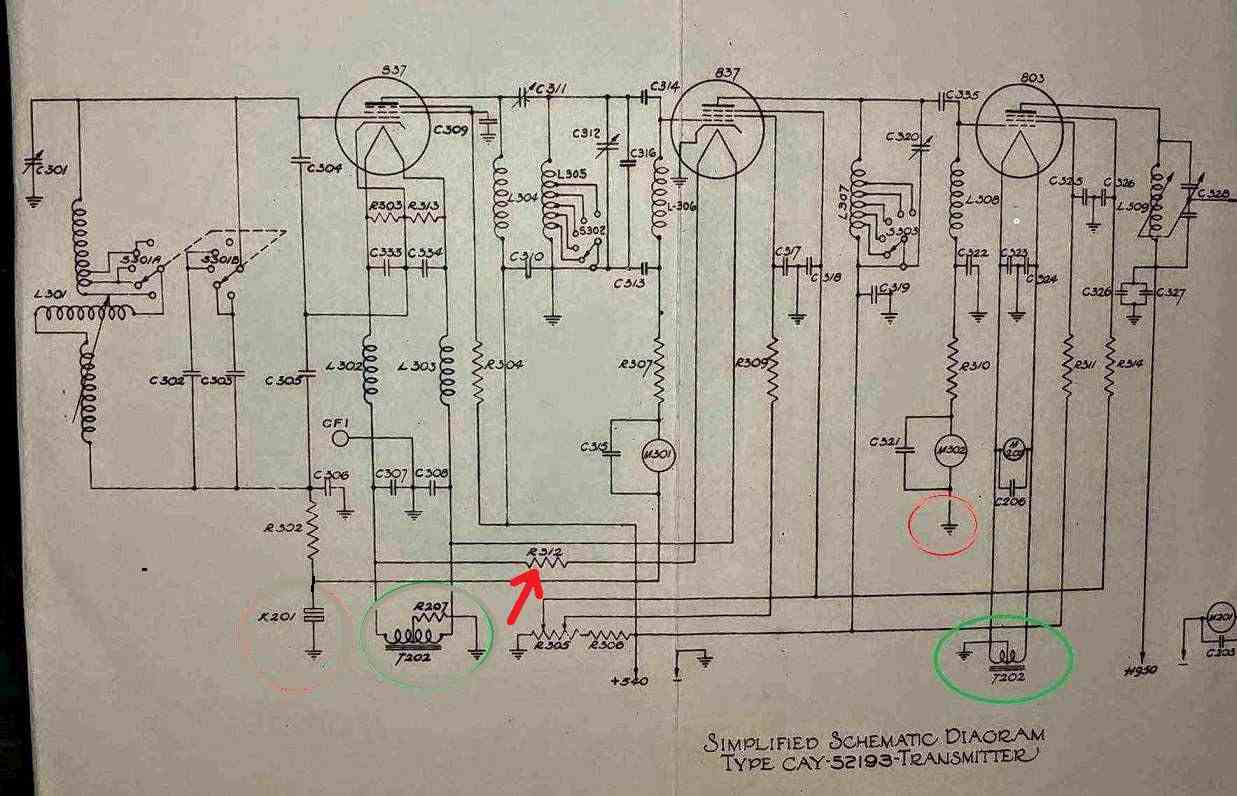

Please take a look at the GO-9 transmitter schematic attached. The 837
MO and 837 IA tubes are supplied filament voltage from the same buss.
However, the connection to the 837 IA tube goes through R-312, a 4.5 Ohm
20 Watt resistor (red arrow).  At the 0.7 Amp current of the 837, this
is going to drop around 3 Volts, reducing the tubes filament voltage
from 12.6 VAC 800Hz down to 9.6 V.  I haven't found a mention of this in
the manual's circuit description.  Why would they do this?

TNX OM ES 73 DE Dave AB5S



--
