I can share the pin measurements, but it gets a little complicated.

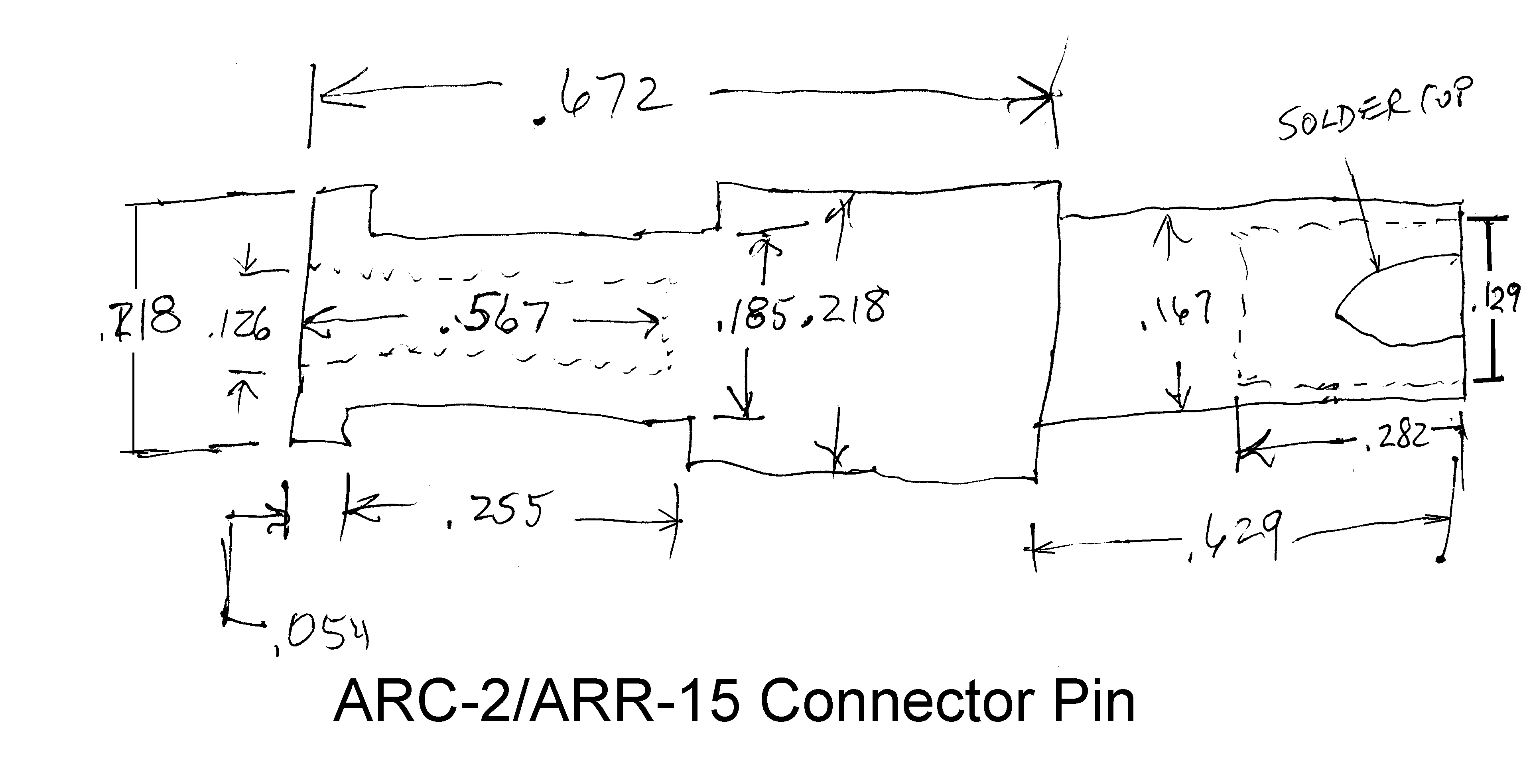

There are actually two connectors in existence - one with a _pair_ of
insulating blocks, and one with a _single_ insulating block.  I haven't
had time to take apart one with the pair of blocks, but below is a
(very) rough sketch of the pin that is used in the .785" thick single
block style.  It is designed to accept the .125" diameter male pin in
the radio set(s).
Mike  KC4TOS

On 6/17/2018 11:34 AM, B. Smith wrote:
> Hi Robert
> What is the source of your insert pins and by chance did you take any
> pin measurements that you could share with us.
> breck k4che
>
> On 6/17/2018 12:15 AM, Robert Meadows wrote:
>> Just purchase the proper insert pins for pin diameter --readily
>> available
