[Milsurplus] C-826/AIC-10 interphone control head schematic/wiring diagram needed

[Michael Hanz]

I was finally getting around to hooking up an LS-184/AIC-10 aircraft
loudspeaker for the rig in the radio shack, when it occurred to me that
I needed a way to select program sources.  Rummaging around in the junk
box, I found the remains of a C-826/AIC-10 that someone had "repurposed"
by removing the rear chassisand connector, as well as stripping all the
wiring out of the control head.  There is not much to it - just five
toggle switches, two backlit light bulbs and a few level balancing
resistors, but it looks ideal for what I need it for.  I would like to
restore it reasonably close to original if possible, with a new
enclosing box on the rear and a new connector to keep the AC noise
pickup down.  Ideally I would like to find three pages - a schematic,
wiring diagram, and dimensioned outline drawing if anyone has a manual

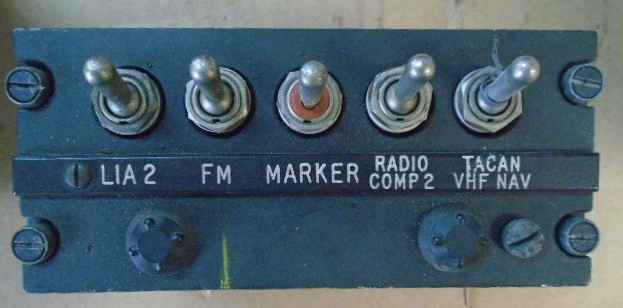

they would be willing to scan these three images from.  To give you a
better idea, attached is a photo of an original C-826 I found on the web.

            73,
  - Mike  KC4TOS
