[Milsurplus] PE-110 question

[David Stinson]

Hi, Hue.  Sorry this took awhile.

It's a little complicated with the PE-110 and the
BC-669.  A lot of

primary switching takes place in the two 669 decks
that controls

primaries in the 110, through two different
connectors.

Once you figure-out how to power the primairies,
it provides

+490, +260, and 12 VAC.  If yours still has the
internal vibrator

supply, it can provide the +220 for the receiver
via a battery.



The 669 "Repair" TM is at:
http://www.radionerds.com/images/0/07/TM-11-4058.p
df



A pin-out for the power connector is on page 15.



That manual shows a picture of the PE-110, but
they left

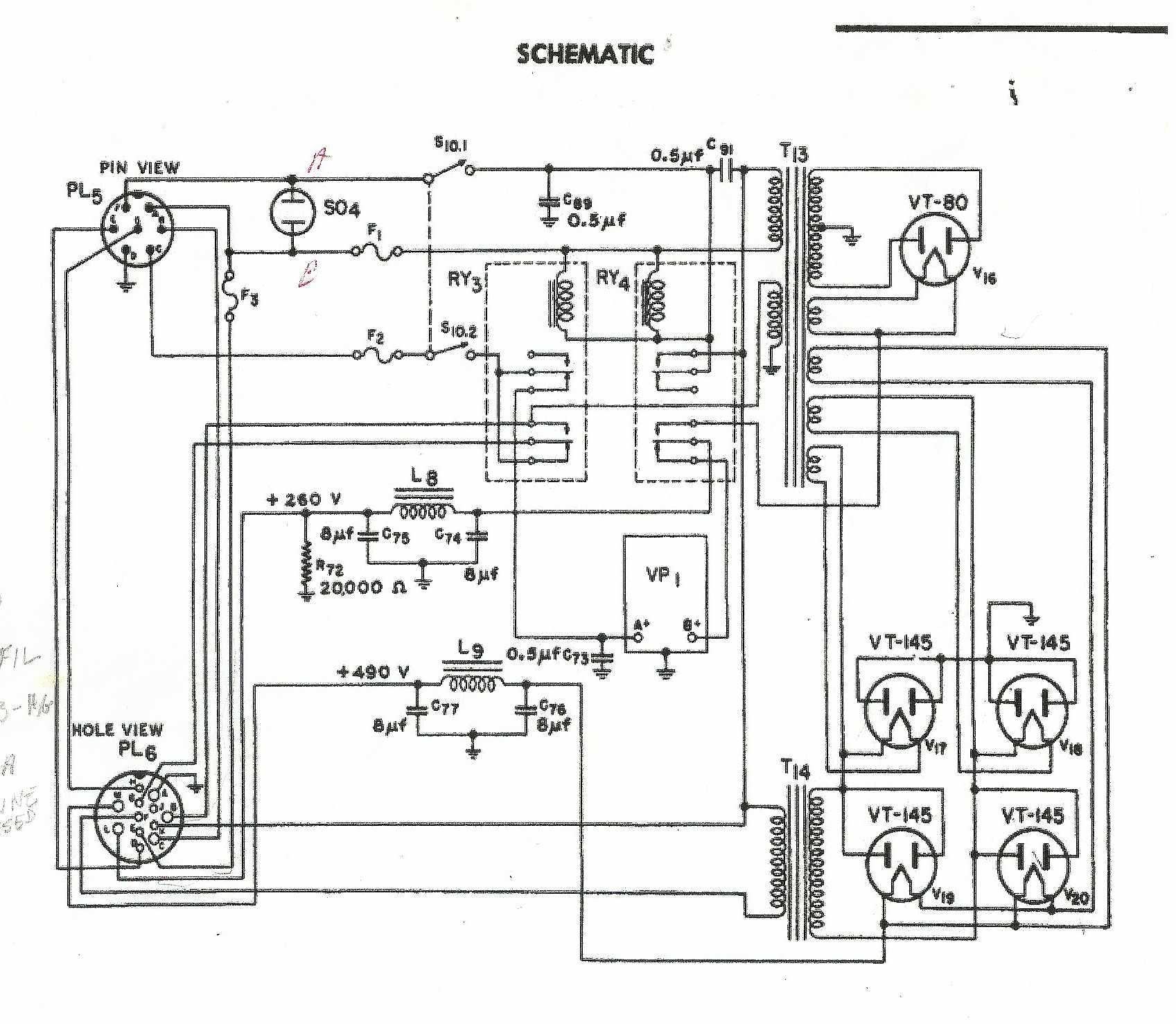

out the schematic- go figure.  I've attached the
only schematic

I have of the PE-110.



GL OM ES 73 DE Dave AB5S
