On 9/3/2017 11:08 AM, Military Wireless Museum via Milsurplus wrote:
> APQ-9 "Carpet III" Radar Jammer
>
> Would anyone know the part number of the larger power input sockets on
> the 9 ?
>
> Someone has removed mine and I'd like to restore it.

It's a AN 3102-30-10P female connector, Ben.  Not common, in my
experience.  Used on both the APQ-2 and APQ-9 jammers -
http://aafradio.org/countermeasures/APQ-2_jammer.html and
http://aafradio.org/countermeasures/APQ-9.html

I don't recall ever seeing it on another piece of aircraft avionics.

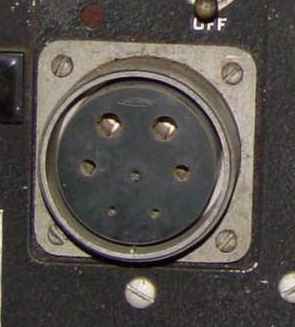

It's just a 7 pin connector, with two pretty large pins. Photo attached.

Good luck,
Mike  KC4TOS
