[Milsurplus] [armyradios] BC-148 Antenna replica ?
Tom B
tbryan at nova.org
Sun Sep 3 10:52:15 EDT 2017

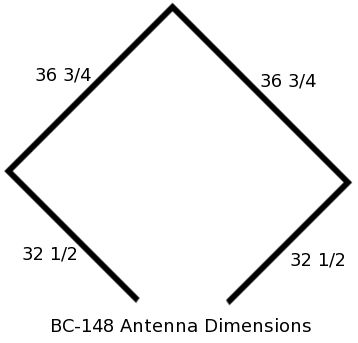

I have a note in my files that says that the two lower legs of the loop
are 32.5" and the upper legs are 36.75". The manual says it is brass
tubing and IIRC is it 0.75" square.

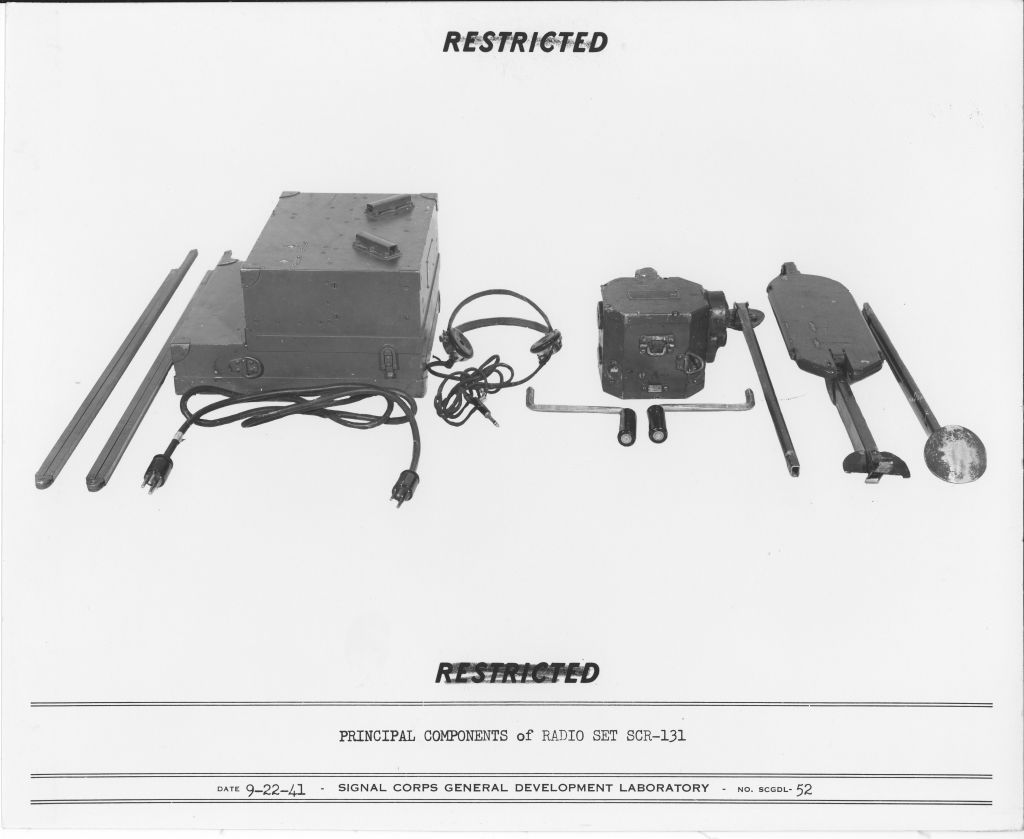

(Square brass tubing is not cheap.) The sections are hinged which you
can see in the photos.
See attached.
There was one displayed at the MRCA West meeting in 2000.
http://www.antiqueradio.com/vinmilequip_Oct-00.html
The photo shows Bjorn Forsberg at the controls. Is Bjorn still around?
Tom Bryan
N3AJA
On 9/3/2017 10:05 AM, David Stinson wrote:
>
> Re: BC-148 Antenna
> Does anyone on this planet have an original antenna from which to
>
> take measurements? I made an antenna for the BC-9 out of copper
>
> tubing, but that was a “functional” replica, not a physical one (made
>
> contacts with it, too :-)
>
> 73 Dave S.
>
>
