[Milsurplus] ARB wire colours ??

[Military Wireless Museum]

Hi. I'm working on my ARB but I can't read the wire colours off the cct I have.

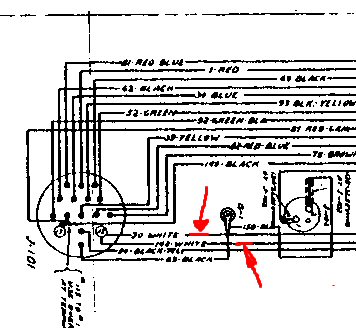

Does anyone have the ARB manual and can read the tracer colours for the 2 wires coming off the control box socket on the 24v return from the CB via the on/off switch.


The pilot lamp goes to this pin and also the feed off to the dyno.


Thanks, Ben.
