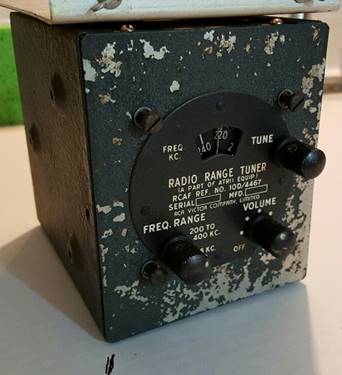

Tom, looks rather like the LF tuner for the RCAF transceiver ATR-11, 2.5-6.7 MHz.  Built by RCA Canada.  As they seem identical,
I am thinking the design was not the manufacturer's; rather, maybe designed by the Canadian gov't and the designs let out for
realization. I was thinking that the tuner includes all but the audio stage, the main chassis getting the audio, but i don't remember
now. My ATR-11 docs consist of one crummy schematic from ETCO.
-Hue


[cid:image003.jpg at 01D36316.95B45490]
