[Milsurplus] R1155: Regulated B+ Supply

David Stinson arc5 at ix.netcom.com
Sat May 13 14:00:18 EDT 2017

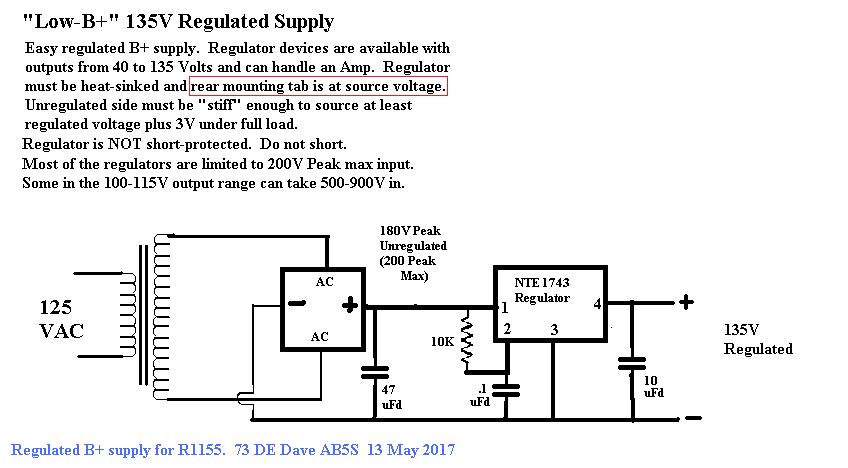

Here's the diagram for the regulated "Low-B+"
135V Plate supply for the R1155.  I think I'm
going to be "best friends" with these neat
HV regulators.

73 Dave AB5S
-------------- next part --------------
A non-text attachment was scrubbed...
Name: R1155PlateSupply.jpg
Type: image/jpeg
Size: 62409 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20170513/e1289924/attachment-0001.jpg>
