[Milsurplus] RAF R-1155A. It Begins

[Ray Fantini]

Cool, unmolested un hacked example! Very choice! Information about the ADF section and the drunken Man display for the R-1155:

http://www.chavfreezone.me.uk/ad8882b9.html

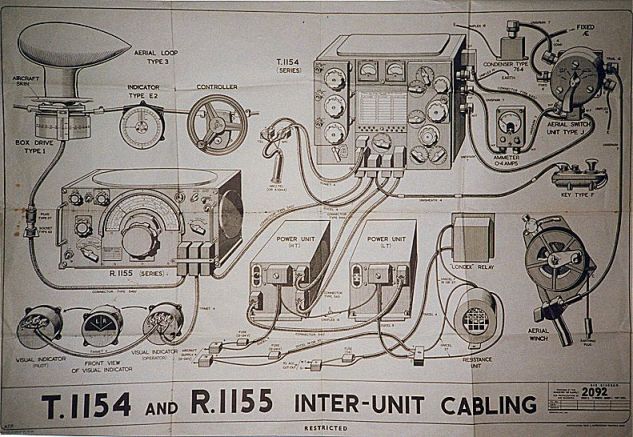

And an interconnect drawing for any others out there that are interested is attached.

Ray F/KA3EKH

-----Original Message-----
From: Milsurplus [mailto:milsurplus-bounces at mailman.qth.net] On Behalf Of David Stinson
Sent: Tuesday, May 02, 2017 12:13 AM
To: Milsurplus <milsurplus at mailman.qth.net>
Subject: [Milsurplus] RAF R-1155A. It Begins

RAF R-1155A.
It Begins:
https://goo.gl/photos/18b3AoVGa44MrJVc9
https://goo.gl/photos/UxN7gon54Ac7Q11F6
Inside views. The DF circuits are intact and the wire insulation is nearly all good. Woo Hoo!
https://goo.gl/photos/2xzNu7dc46UakF7d8
73 Dave AB5S
______________________________________________________________
Milsurplus mailing list
Home: http://mailman.qth.net/mailman/listinfo/milsurplus
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:Milsurplus at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1155_1154_cabling_c.jpg
Type: image/jpeg
Size: 83566 bytes
Desc: 1155_1154_cabling_c.jpg
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20170502/412fddf8/attachment-0001.jpg>
