[Milsurplus] TBX at Roi

[Hubert Miller]

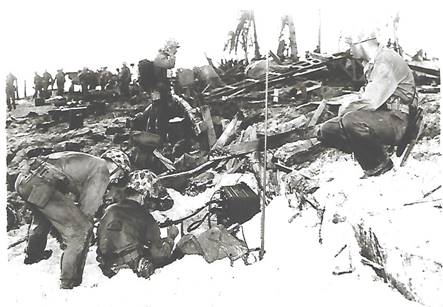

RADIO-TELEPHONE SETS INSTALLED NEAR LOW SEA WALL ON ROI    MARINE CORPS PHOTO 23-3
[  In the original photo, the antenna measures 67 cm from bottom to top of photo. In the original, there is visible one apparent guy wire,
to be seen just touching the left edge of the football shaped thing in the background near the top section of the antenna. I took a straight
rule and off the page, figured the probable intersection of this probable guy wire with the vertical vector of the antenna, and it seemed the
intersection was about 145 cm from the visible bottom of the antenna. This sounds to me like maybe around 15 foot for this antenna.
Your guess or information may be better than mine. I do not want to dig out my TBX manual at this moment. This is about the best I could
do with the original.  ]


[cid:image003.jpg at 01D36ED0.8D29DBE0]
