[Milsurplus] TCK lower compartment

[Rob Flory]

Hi Ken,

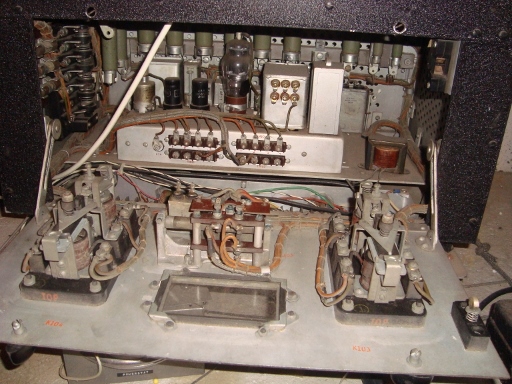

I had to go look at mine.  Here is a picture.

The chassis with the metal octals and shouldered power tube on it is the
modulator, which may have been removed from yours.  On the back of the door
are 2 large relays that have to do with the interlock system if I remember
right.  In the middle is the funky keying relay.

The open frame choke on the right hand side is not original equipment.

RF
