WA2VOI did a nice job on our 10 GHz antenna (24 slot waveguide) for our
beacon project here in Eau Claire...

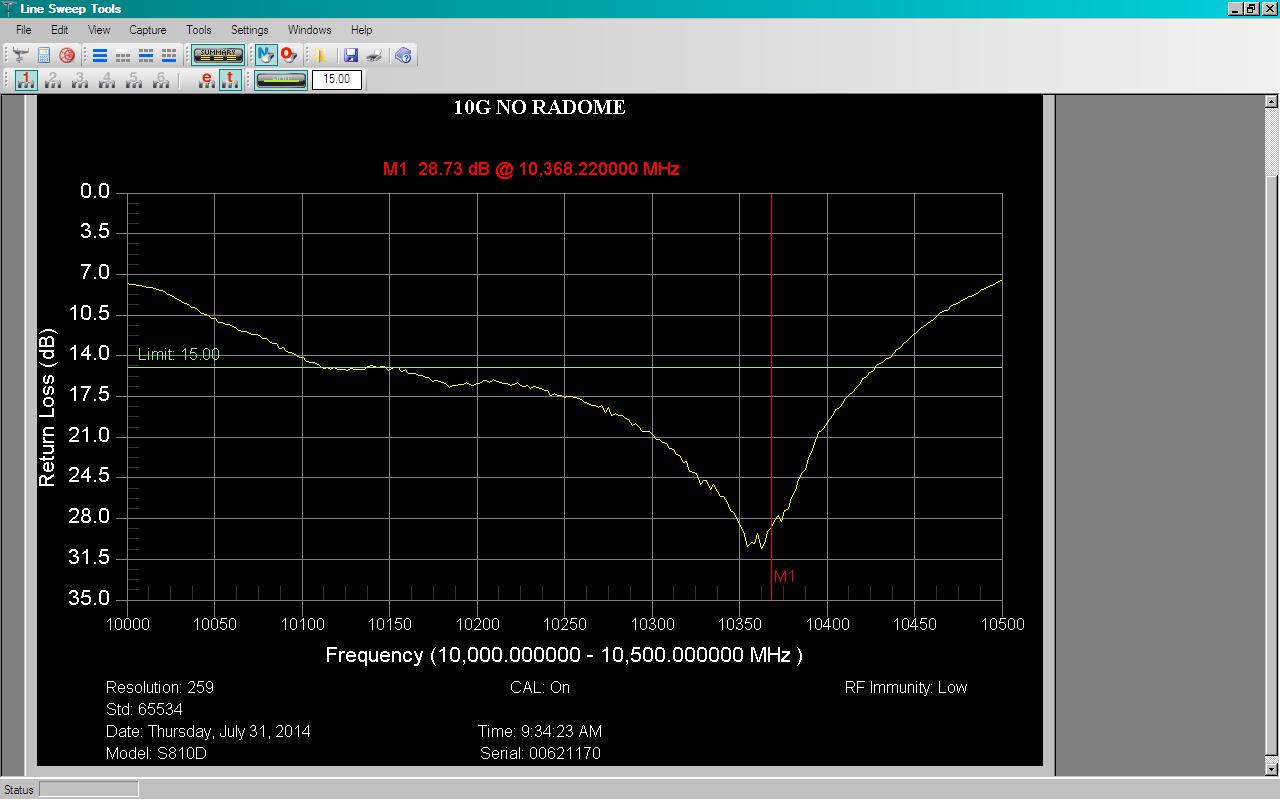

Attached is the return loss plot.  -10 dB is 2:1 SWR.  The lower the
return loss, the better the SWR.  The antenna has a return loss of
almost -29 dB near our proposed frequency (10368.135 MHz).  That is an
SWR of 1.08:1, VERY acceptable!  :D  The only parts I need to acquire
now is the power supply components and keyer chip (a whopping $10).  We
hope to have it on the air by this Fall at 500 mW output and up around
80 feet from EN44ex.

Scott
N0EDV
