[Lowfer] SIDs

[Garry]

I've been monitoring VLF trnasmitter signal strengths in the daytime for
awhile, looking for sudden ionospheric disturbances (SIDs). Using

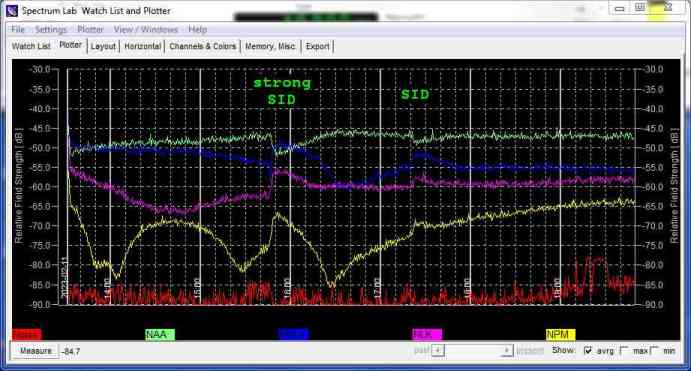

Spectrum Lab software signal strength - versus - time graphs have been
created each day for four VLF stations: (1) NPM, Hawaii, 21.4 kHz; (2)
NAA, Maine, 24.0 kHz; (3) NLK, Washington, 24.8 kHz; and (4) NML4, ND,
25.2 kHz. GOES x-ray flux spikes in time indicate such events (see
https://www.swpc.noaa.gov/products/goes-x-ray-flux) but so far here the
impact on VLF signal strength has generally only been a few dB. But
today around 1550Z a very large event occurred, followed around 1722Z by
a typical event.

73, Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Capture_02112023_134954_SID_sdr-iq1_eprobe2_resize.jpg
Type: image/jpeg
Size: 35163 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20230211/befa1a62/attachment.jpg>
