[Lowfer] 518 kHz Navtex interference

[Garry]

On June 9 William Hepburn reported interference to Navtex signals on 518
kHz by station CHLO broadcasting HD radio on 530 kHz from near Toronto,
Canada (see https://www.dxinfocentre.com/navtex.htm and
https://www.lwca.net/mb/msg/11452.htm). Interference is present here in
faraway Chicago and severely limits Navtex decoding. Mariners throughout
the Great Lakes must be similarly impacted. At first I thought this was

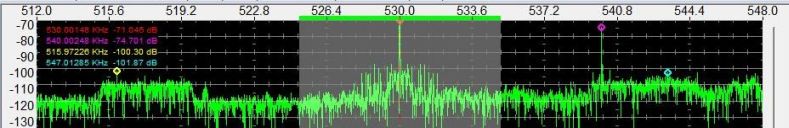

from some other source but the in-band on-channel digital sideband
spectrum for HD radio matches what is seen and the conventional radio
signal at 530 kHz consists of ethnic talk and music as expected from
CHLO. In addition to the flat digital spectrum that blankets 518 kHz
there seems to be a narrow subcarrier, perhaps to carry other content.
--
73, Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Capture_06142021_030343_crop_resize.jpg
Type: image/jpeg
Size: 30059 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20210614/007d9269/attachment-0001.jpg>
