[Lowfer] Unknown signal/modulation on 475 kHz

Garry k3siw at sbcglobal.net
Wed Jul 11 17:59:42 EDT 2018


Last night, in addition to 474.2 kHz wspr2 and K9KFR JT9 signals and
KU4XR on 477 kHz Op8, two strong signals were seen here seemingly
sending QRSS. But I tuned the one on 475 kHz and found it was not QRSS,

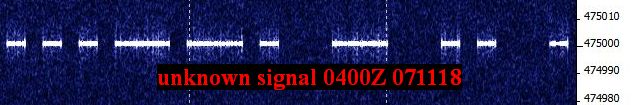

nor was it Opera (see attachment). The dot transmissions lasted a bit
over 10 seconds long. The other signal was on about 475850 Hz and
appeared to be sending a similar short/long keying sequence with dead
times between the keyups. Does anyone know what this modulation scheme is?
---
73, Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Capture_07102018_225955_sdr-iq2_eprobe2_crop.jpg
Type: image/jpeg
Size: 20024 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20180711/e978d90a/attachment.jpg>
