[Lowfer] WWVB clock on 60 kHz

[Garry]

Of course WWVB is pounding in on 60 kHz, but around Chicago there's a
big problem decoding it with an e-probe. That isn't because of the 60-Hz
picket fence present here - that's weak compared to WWVB. Rather it's
because high-powered AM broadcast stations WGN on 720 kHz and WBBM on
780 kHz mask the signalling with second-order IM. To get around that I
have to use a loop and aim it at roughly 15 deg (the AM broadcast
stations are at roughly 105 deg) to null the IM.
--
Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...

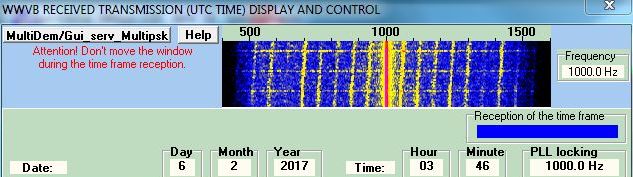

Name: capt_059_WWVB_DN70lq_CO_020517_sdr-iq2_eprobe1_crop.jpg
Type: image/jpeg
Size: 33105 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20170205/4e46a8e1/attachment.jpg>
