[Lowfer] OPDS 32 tonight 2230-06-0700...

[Garry Hess]

Bob, your signal was so strong it brought out flaws in the opds code
and/or my SDR-IQ receiver. I was out of town but got back last evening
and fired up to look at 136 kHz with an e-probe. After the standard very
long acquisition period, I got decodes for WE2XEB and VO1NA around
0300Z. However, the WE2XEB decoded line was clearly amiss - it quoted

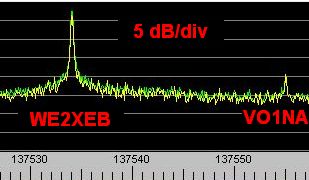

the snr as -99.9 and only indicated 93% correlation. On the spectrum a
very big peak from WE2XEB was present (but also very wide, perhaps the
source of the problem), along with a smaller peak from VO1NA. A few
minutes later opds changed VO1NA to -99.9 snr also:

sdr-iq1, eprobe1
2013-10-30 03:26:55 VO1NA   2836km 137555.014Hz  30mHz -45.6dBOp  57% 15.3dB
2013-10-30 02:58:29 WE2XEB   934km 137533.971Hz 233mHz -99.9dBOp  93% 20.2dB

Followed by:
sdr-iq1, eprobe1
2013-10-30 03:31:25 WE2XEB   934km 137533.978Hz 185mHz -99.9dBOp 100% 18.9dB
2013-10-30 03:26:57 VO1NA   2836km 137554.971Hz 192mHz -99.9dBOp  88% 18.4dB
2013-10-30 02:58:29 WE2XEB   934km 137533.971Hz 233mHz -99.9dBOp  93% 20.2dB

Next, I fired up opera1.4.7 and got decodes for both WE2XEB and VO1NA at
sensible snrs. WE2XEB was roughly 2 dB better with a loop aimed at
VO1NA, but strangely VO1NA never decoded with the loop.

opera1.4.7
06:57   136 VO1NA Op32 -35 dB    sdr-iq1, eprobe1
06:16   136 WE2XEB Op32 -13 dB
05:43   136 WE2XEB Op32 -11 dB   sdr-iq1, loop at VO1NA
05:10   136 WE2XEB Op32 -16 dB
04:37   136 WE2XEB Op32 -18 dB   sdr-iq1, eprobe1
04:36   136 VO1NA Op32 -28 dB

When WE2XEB went QRT I returned to opds32 and then also got sensible
snrs. The values ran perhaps 9 dB lower than those using opera1.4.7, a
difference that has been noted previously by others.

sdr-iq1, eprobe1
2013-10-30 09:17:11 VO1NA   2836km 137554.993Hz   3mHz -38.8dBOp  99% 19.1dB
2013-10-30 08:07:06 VO1NA   2836km 137554.993Hz   6mHz -42.5dBOp  99% 18.3dB

I don't know what the last dB numbers in the decode lines represent.
--
73, Garry, K3SIW, EN52ta, Elgin, IL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: capt32_WE2XEB_VO1NA_sdr-iq1_eprobe1_102913A_crop.jpg
Type: image/jpeg
Size: 13312 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20131030/6e9d66cd/attachment.jpg>
