[Lowfer] KU4XR sending QRSS-10 on 160 Meters

[JD]

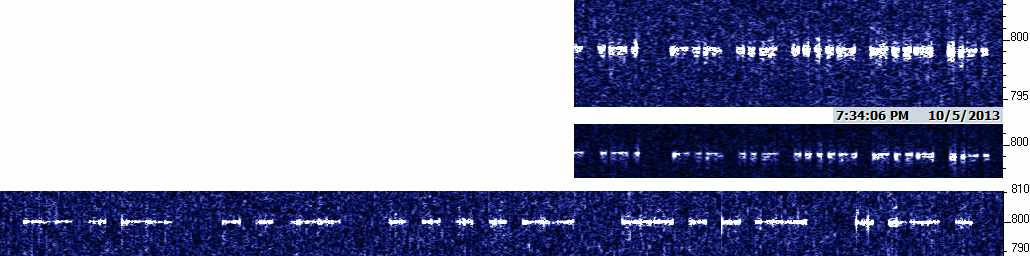

Here are three simultaneous views.  The top is Argo 10 sec slow as I usually
view it with moderately high sensitivity and AGC on.  If I didn't already
know what I was looking for, the fuzziness might have prevented recognizing
the characters.

I wondered where this was coming from, which is why I did multiple captures.
The middle shot is also at 10 sec with AGC, but the visual gain reduced
drastically.  It appeared there were sidebands arising from Doppler shift,
and also from amplitude variations.

The QRSS3 shot at bottom shows the amplitude fluctuations more clearly than
can be seen at 10 seconds.

Because the approximate rate of the amplitude variations is close to the
interelement interval, it may be that a mode either shorter or longer than
10 seconds would be more readable, with a longer time also being more
efficient efficient for detection.  (Just as 10 sec mode is too long for
HiFERs, it may be a bit short for 160 meters.)  The amplitude-variation
fuzziness probably wouldn't blur the elements together as badly at QRSS20,
for instance.  Just a thought.

John
