[Lowfer] WSPR/JT9-2 Shootout

[jrusgrove at comcast.net]

John

XES signal is quite strong here which makes it difficult to compare the two modes. With the back of
the antenna toward you, the preamp out of line and with 24 dB attenuation in place I can reduce the
signals to a point near the reception threshold. This drops the signals into the receiver noise
floor which is, of course,  relatively 'sterile'. The better test would be as we normally do ...
with XES running a weak 'micro power' signal and letting the band noise wreak it's havoc on the weak

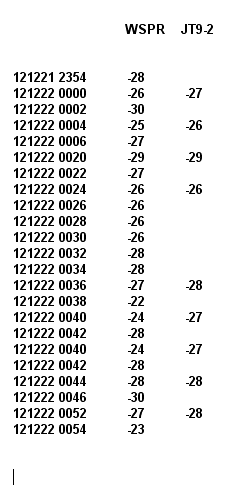

signals. Results are below. There were a few more missed JT9-2s than WSPRs.

Jay W1VD  WD2XNS  WE2XGR/2
-------------- next part --------------
A non-text attachment was scrubbed...
Name: WSPRJT9.gif
Type: image/gif
Size: 7051 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/lowfer/attachments/20121221/f8935b2e/attachment.gif>
