[K3VOA] Home Station Building

[Ken Claerbout]

Most of you have heard me talk about putting up a couple of towers at my house.  My old QTH had two 90' towers.  I'm basically doing the same here.  The first antenna is a M2 3 element 40 meter beam (40M3C).  The boom is 32'.  The elements are physically shortened by loading coils.  Those are the round tubes you see in each element.

My second tower is to 45', where it waits for the first set of guy lines.  I mounted the boom of the 40 meter beam about chest high on the side of that tower, and used that as a place to build out the rest of the beam.  Once completed I ran an SWR sweep.  As expected, because the antenna is so low to the ground, the curve came out below the 40 meter band, but it looked good otherwise!  New years day I took it up to 30', so I could see what the curve looked like.  As expected, it did shift upward in frequency. But I was a little surprised it moved up as much as it did.  The curve at 30' is about where I want it.  So the question is what will happen when it gets installed on the tower at 85'?  I've asked the manufacturer if they have any thoughts.

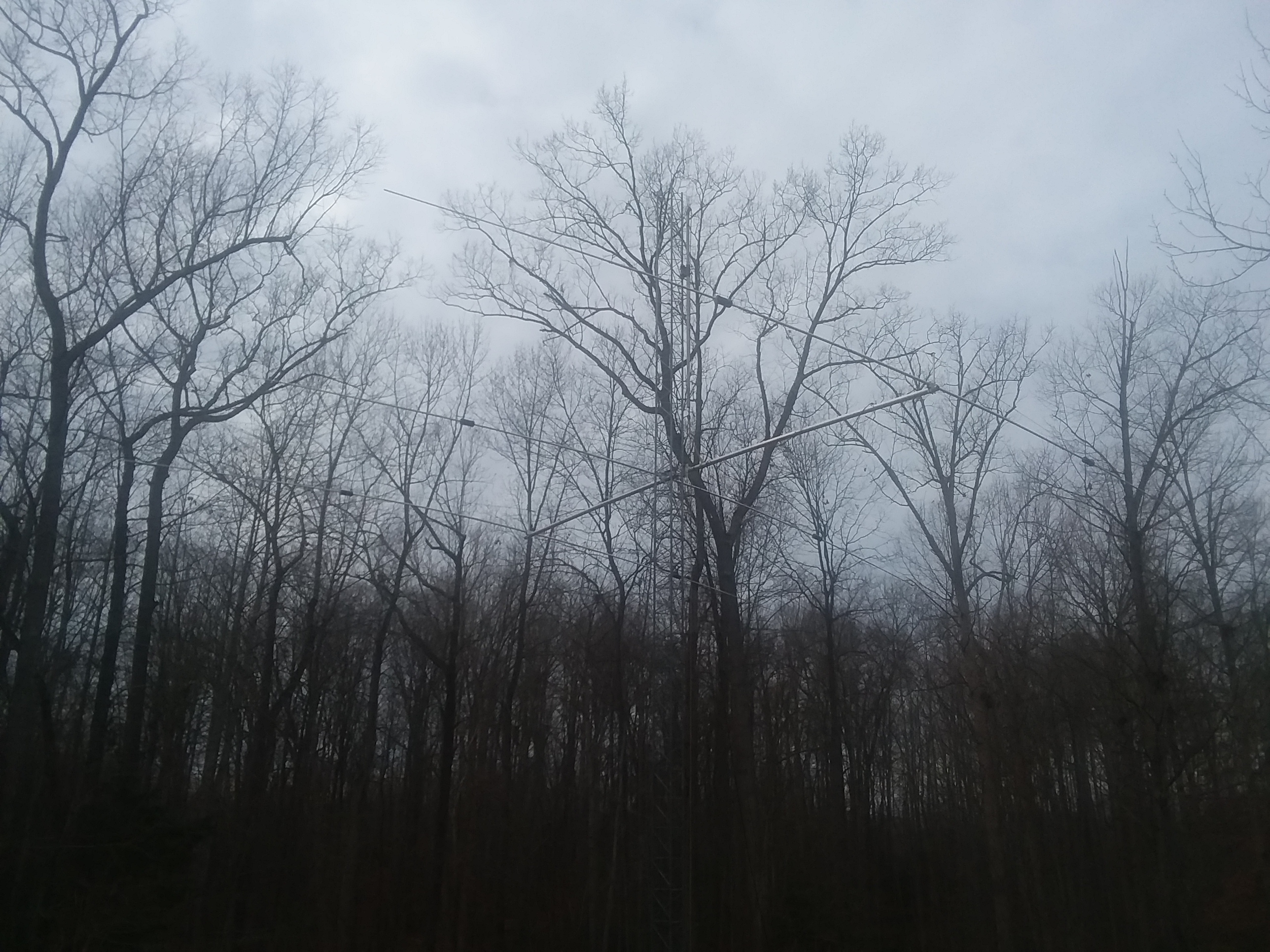

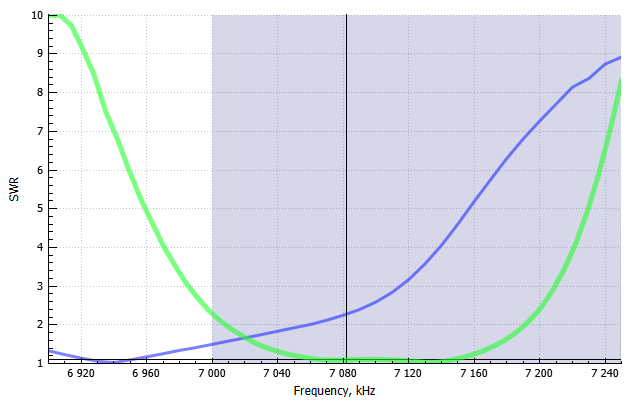

I've attached a picture of the antenna and the SWR plots.  The blue curve is with the antenna at ground level.  The green trace is at 30'.  Hopefully the attachments are passed by the email reflector.

Enjoy!

73
Ken K4ZW
