[K3CAL] Path plot for Sunderland tower to Lusby (G0JKN)

[Shawn Donley]

Thanks Nigel,

Pretty good guess....the repeater antenna is a Telewave ANT150F6-2 with its base at the 280 ft point on the Sunderland tower.

OBTW...  some other useful radio horizon path sites:

https://www.ve2dbe.com/rmonline_s.asp
You need to get a user name and password but it's free for amateur radio frequencies.
Experience shows it's overly optimistic for 70cm paths here in Calvert County

http://www.heywhatsthat.com/
Lot's of capability.  Even shows a panorama of what you would see against the horizon for a viewer location and height above local terrain.
Caution....can be addictive.

A while ago I put together some code (MATLAB) that identifies high terrain around a user-supplied set of coordinates.  It finds the peaks, but also shows their "prominence" and "isolation"  (distance to a peak of higher or equal height).  Perfect for finding that optimal DX QTH.  It uses a VERY large digital terrain database the covers most of the world.   Example output attached (a spot on New Creek Mt in West Virginia).

If anyone is interested in a run, let me know.  Here in Calvert there's really little point in running since we don't have hills or mountains around here.

N3AE


> On 12/21/2024 4:39 PM EST Nigel Fenton via K3CAL <k3cal at mailman.qth.net> wrote:
>
>

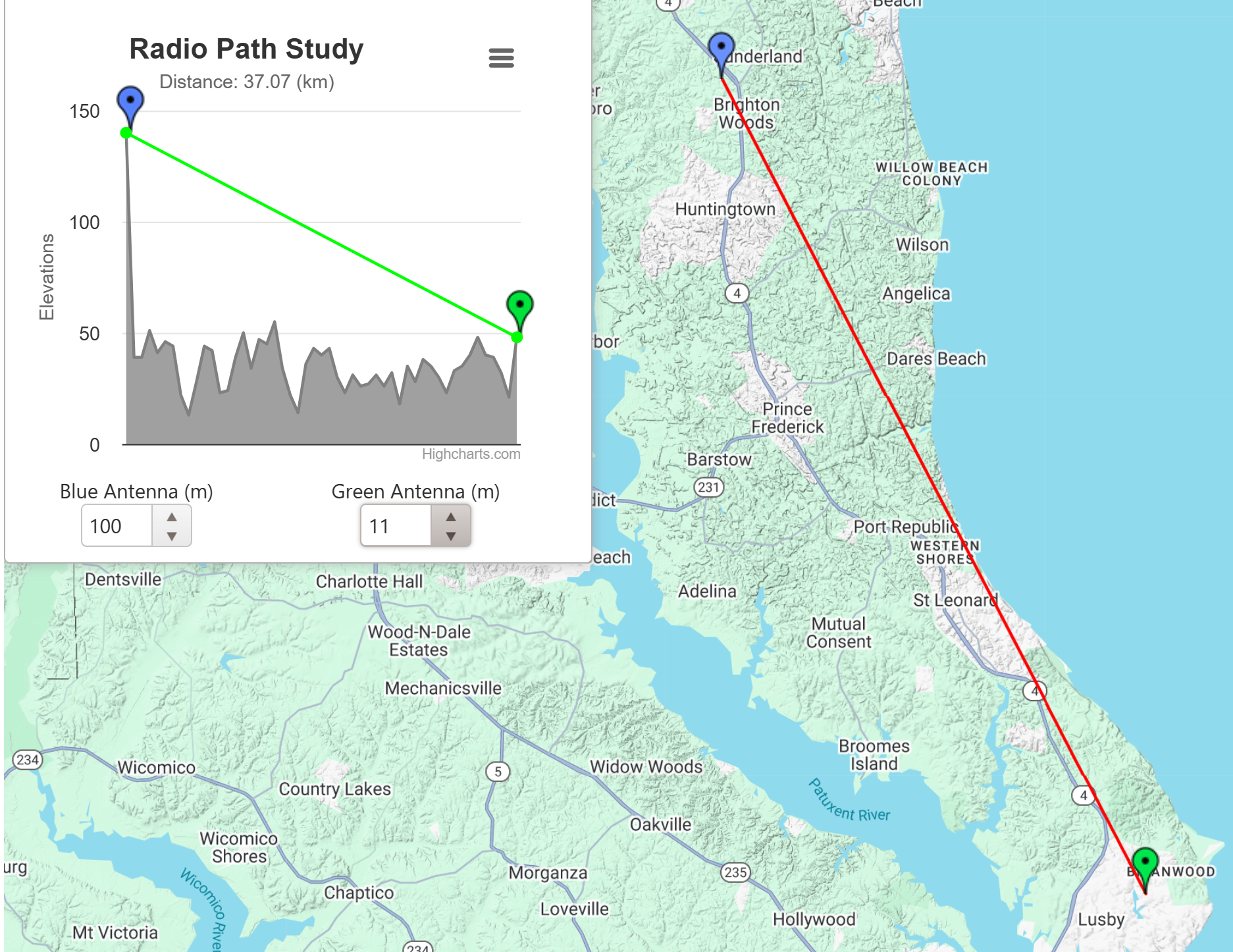

> Just for giggles I re-found this web app for plotting the lay of the land between two points.
>
> I wasnt sure of the height of the antennas at Sunderland but set it to 100 mtrs(300 foot aprox)
>
> https://www.scadacore.com/tools/rf-path/rf-line-of-sight/ https://link.getmailspring.com/link/4AD7A790-53F1-47BB-8E01-6452C45BDA01@getmailspring.com/0?redirect=https%3A%2F%2Fwww.scadacore.com%2Ftools%2Frf-path%2Frf-line-of-sight%2F&recipient=azNjYWxAbWFpbG1hbi5xdGgubmV0  the web address.
>
>
> Regards Nigel - G0JKN
