[K3CAL] Repeater Antennas Need Repair 6-22-23

KB3WFV kb3wfv at yahoo.com
Thu Jun 22 17:14:50 EDT 2023


To whom it may concern,

Noise, crackle, pops, static, and dropouts occur frequently on the input of the 444.950 Lusby repeater and therefore across the RF link to the 146.985 Sunderland repeater. Five (5) ,months  of testing have narrowed the cause to a probable problem with the antennas on the Lusby tower. All of the antennas in use by CARA are the responsibility of Calvert County. This includes the feed lines from the antennas   to the polly phaser connection at the shelter building.

All of the steps taken to prove out the source of signal noise, crackling, pops, static and drop outs on the 444.950 Lusby Repeater System have been presented in several emails. These emails are the cumulative result of multiple trips over the last four months to the Lusby tower site. Including attachments of the screen shots taken from a commercial Digital Bird Antenna Analyzer showing antenna sweep results of both the 235 foot leg A north facing antenna and the 205 leg C south facing antenna

The equipment as been tested with a commercial service monitor and the antenna system has been swept with a commercial antenna analyzer. All of the equipment that CARA is responsible for, appears to be working correctly.

The summary includes but not limited to...

1) Noise, Crackling, pops and drop outs on link radios. Not heard on the 444.950 repeater.
2) Swapped antennas - placing the link on the north antenna and the repeater on the south antenna
3) Noise, Crackling, pops and drop outs moved to the 444.950 repeater. Repeated by the Lusby link radio to Sunderland. Not heard on the Sunderland link radio to Lusby.
4) Swept antenna system found high SWR on the south antenna. Unable to correct high SWR.
5) Service monitor sensitivity testing presented crackling on the receive of the 444.950 indicating an arc over condition from a loose or bad connection
6) Found and corrected loose coax connections from radio raxk to bulkhead connections.
7) No further bad connection found in the shelter.
8) Sweep tests do not indicate a bad connection to be in the feed line on the tower.
9) Ground level digital photograph of tower shows jumper from feed line to the south facing repeater antenna out of it's bracket.
10) Ground level photos indicate a loose retaining nut on a radial element of the antenna.
11) Signals from properly constructed and operated stations using the444.950 with full quieting signals can be heard to wavier back and forth, sometimes crackle, sometimes static or noise other times drop out completely.
12) Several conversations with multiple communication professionals. Including one who is currently climbing several Calvert County Towers to correct improperly installed antennas by the original Motorola sub contractor.
13. Drone flight video and still photos at antenna level  show missing antenna hardware and damage on both Lusby Tower Antennas. The 235 foot leg A north facing antenna has missing hardware and bent ground radials. The 205 leg C south facing antenna has missing hardware and a unsecured jumper cable.

Based on the information above and more that has been presented in other emails. In combination with experienced communication industry professionals. It is recommended to replace both Lusby Tower antennas.

NOTE: The above information pertains only to the Lusby 444.950 Tower Site. Please know that drone flight video and still photos also show missing antenna hardware on the Sunderland 146.985 Tower Site.

Given that all of the antennas in use by CARA are the responsibility of Calvert County. Please contact the person who is responsible for correcting antenna problems on Calvert County Tower sites.

Regards
Brian
KB3WFV
-------------- next part --------------
A non-text attachment was scrubbed...

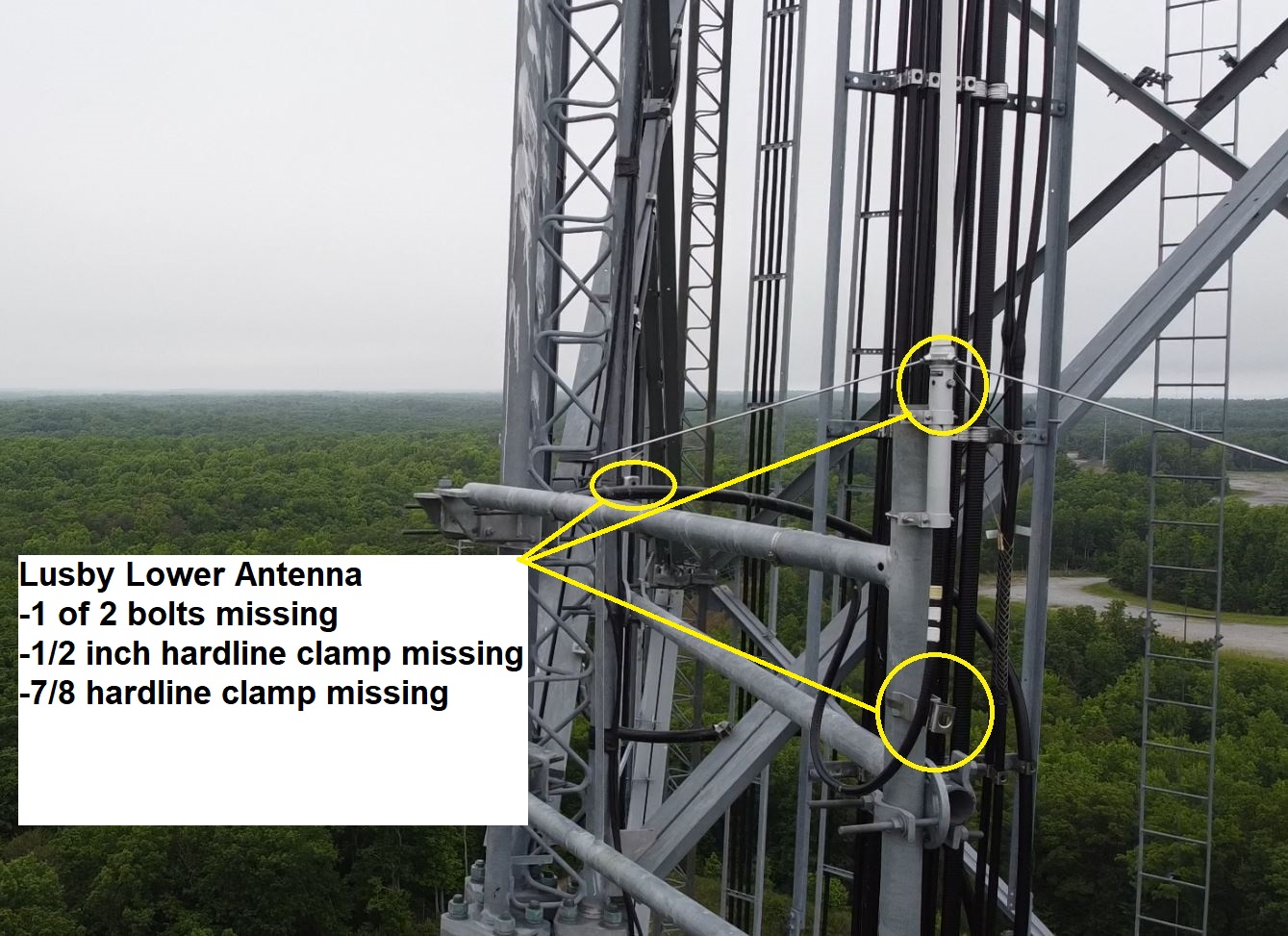

Name: Lusby Lower1E.jpg
Type: image/jpeg
Size: 371996 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/k3cal/attachments/20230622/6bf5f95c/attachment-0005.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

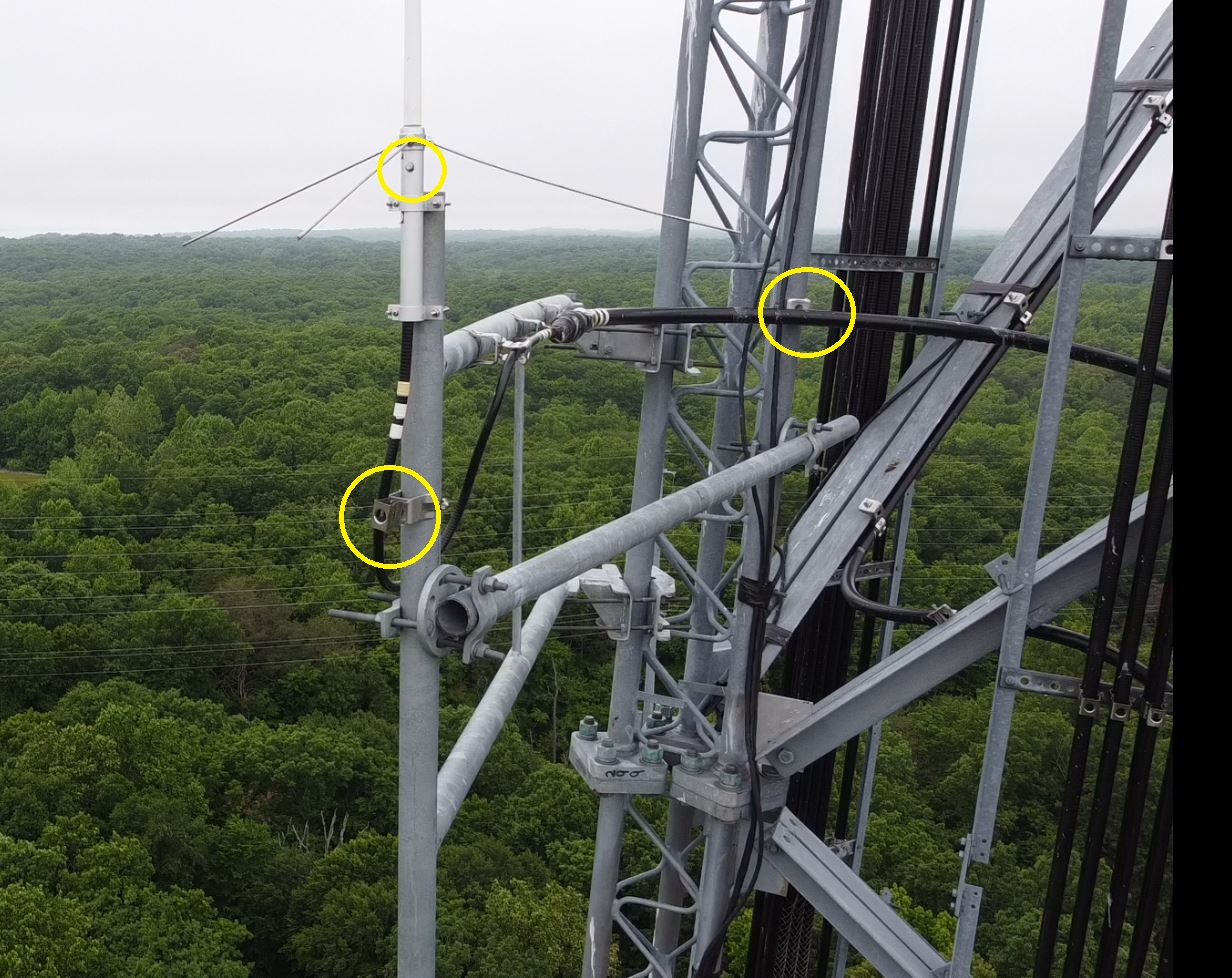

Name: Lusby Lower2e.jpg
Type: image/jpeg
Size: 384289 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/k3cal/attachments/20230622/6bf5f95c/attachment-0006.jpg>
-------------- next part --------------

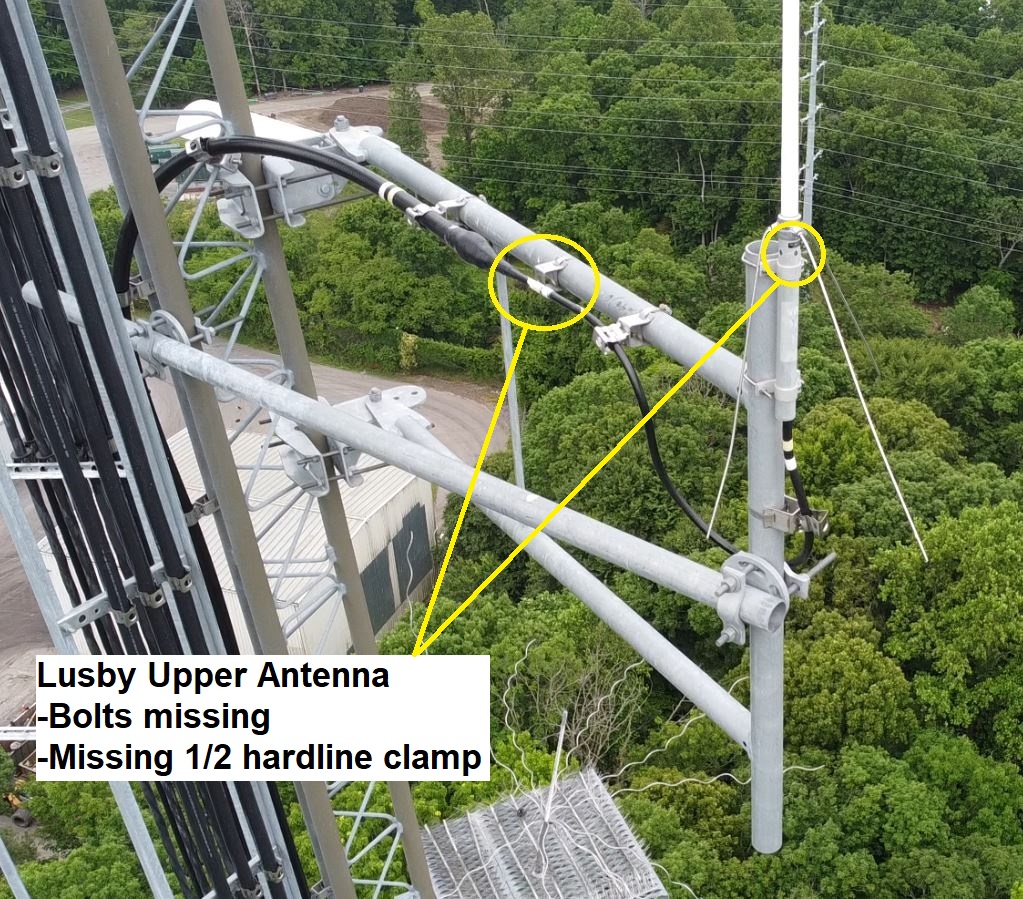

A non-text attachment was scrubbed...
Name: Lusby Upper1e.jpg
Type: image/jpeg
Size: 442715 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/k3cal/attachments/20230622/6bf5f95c/attachment-0007.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Lusby Upper2e.jpg
Type: image/jpeg
Size: 498276 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/k3cal/attachments/20230622/6bf5f95c/attachment-0008.jpg>
-------------- next part --------------

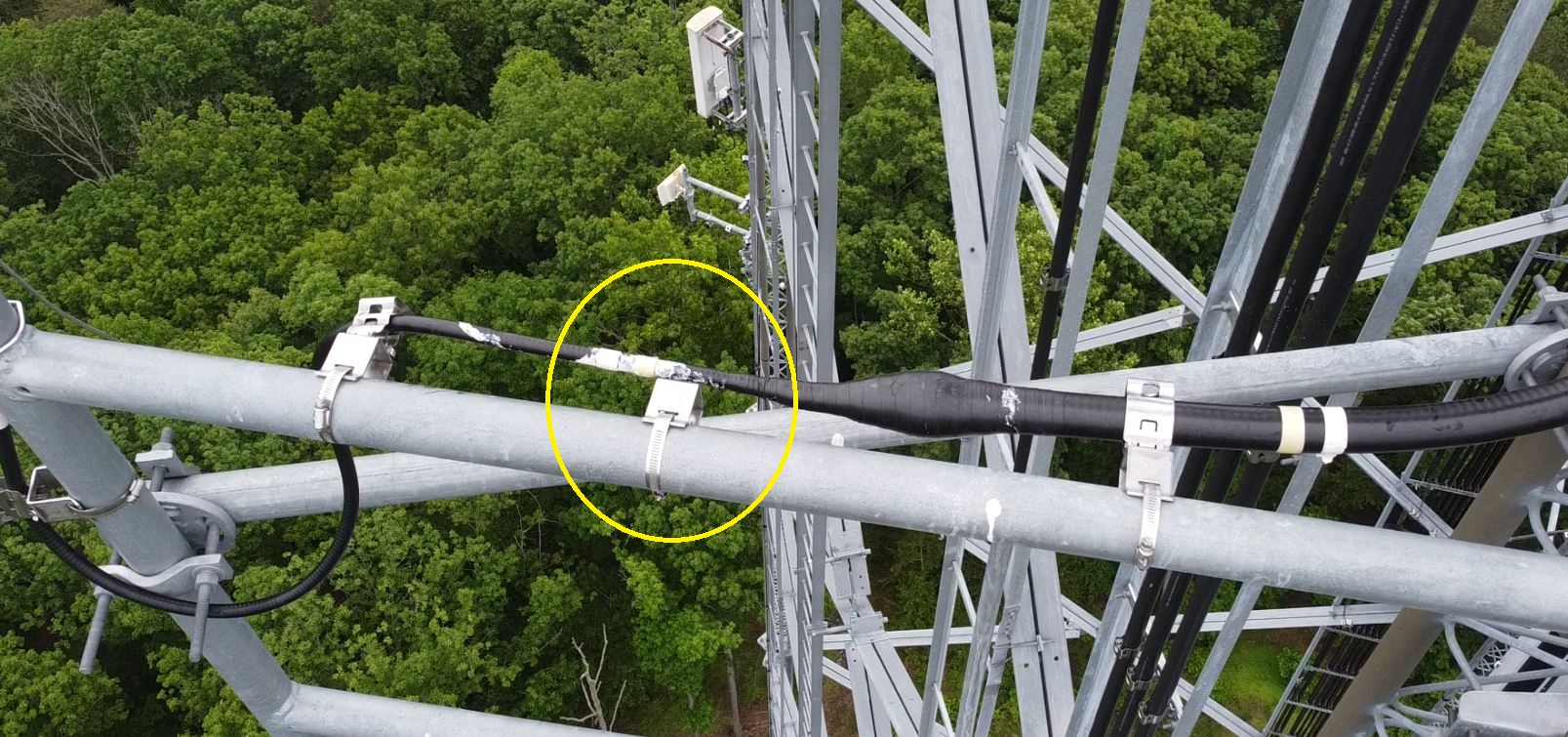

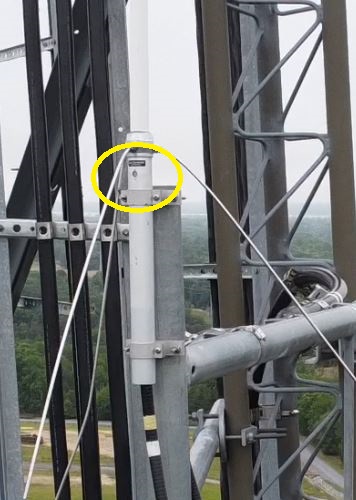

A non-text attachment was scrubbed...
