[K3CAL] Hospital Installation

[Shawn Donley]

Chuck,

Had considered 1/2 inch like LDF4-50A but not sure if there's enough on the roll CARA owns to do the hospital and have enough left for other projects (which are on hold, like new coax for Prince Frederick).  But we could purchase LDF4-50A from TheRFConnection for about $2.00 a foot.  Not sure we would need it for the 440 link too, considering you can see the Mt Hope towers from the hospital roof (8 mile line-of-sight).

But if you have connectors to donate for the LDF4-50A, that would swing the economics in favor of using it.

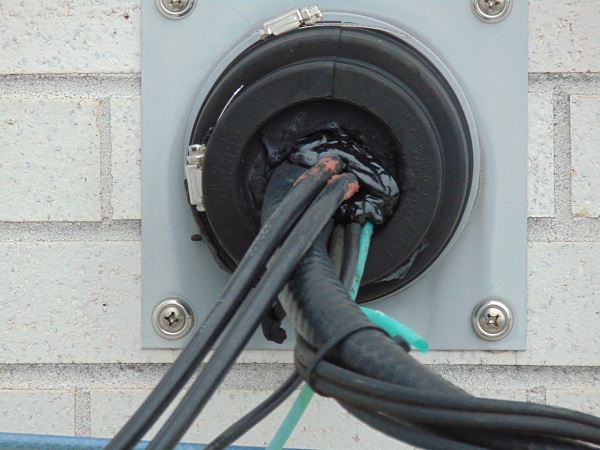

Also a bit concerned about how much space is left in the room entrance boot.  Picture attached.  That's one reason I listed 1/4" Superflex in the "alternate item" summary of the spreadsheet....smaller diameter.

Shawn



> On November 15, 2019 at 10:40 PM Chuck Shefflette <cshefflette at icloud.com> wrote:
>
>     Shawn,
>
>     Sounds like a good plan. I agree with out about UHF connectors, N connectors are superior in all ways. Had you considered using LDF4-50B or equivalent rather than 214 or Superflex? I have a bunch of brand new N connectors for it that are just sitting in boxes.
>
>     Chuck
>     AA3CS
>
>     — Engineer:  "If it ain't broke I haven't messed with it enough yet."
>
>     -------- Original message --------
>     From: Shawn Donley <n3ae at comcast.net>
>     Date: 11/15/19 20:26 (GMT-05:00)
>     To: K3CAL Reflector <k3cal at mailman.qth.net>
>     Subject: [K3CAL] Hospital Installation
>
>     All,
>
>     As you probably know by now, CalvertHealth Medical Center (the hospital) has approved our proposal to install an antenna on the hospital roof and equipment in the adjacent climate controlled equipment room.   Both the roof and the equipment room can be reached by elevator and one flight of stairs ... no expensive tower climbers needed.  We will be moving the 2M repeater to the hospital as an experiment once the antenna and coax is installed.
>
>     We already have a Diamond X300NA antenna suitable for this effort.  With the help of others I put together the attached spreadsheet to list what else we need for a quality install at the hospital.
>
>     This isn't a request for money but rather an opportunity to see if CARA members might have some of the needed hardware which could be donated for the cause, or know of other sources for the listed items but at a better price.
>
>     The 440MHz Yagi is for a link to Mt Hope.
>
>     I also attached a summary of the coverage tests we conducted at the hospital in October, which was very positive for 2M (and less so for 70cm)
>
>     Let me know if you have any questions.
>
>     N3AE
>
