[K3CAL] Any oscope and signal analysis experts?

[David Metler]

Pic didn't attach
On May 14, 2016 1:48 PM, "David Metler" <halltrailfab at gmail.com> wrote:

> I have gotten great reports on my audio with amplifier...but as a learning
> exercise...I connected my oscope to my rf output to see what my signal
> looked like..in some cases with no amplifier..it looks like my audio flat
> tops.  But I don't know how to correct that with my ftdx 3000.  Here is a

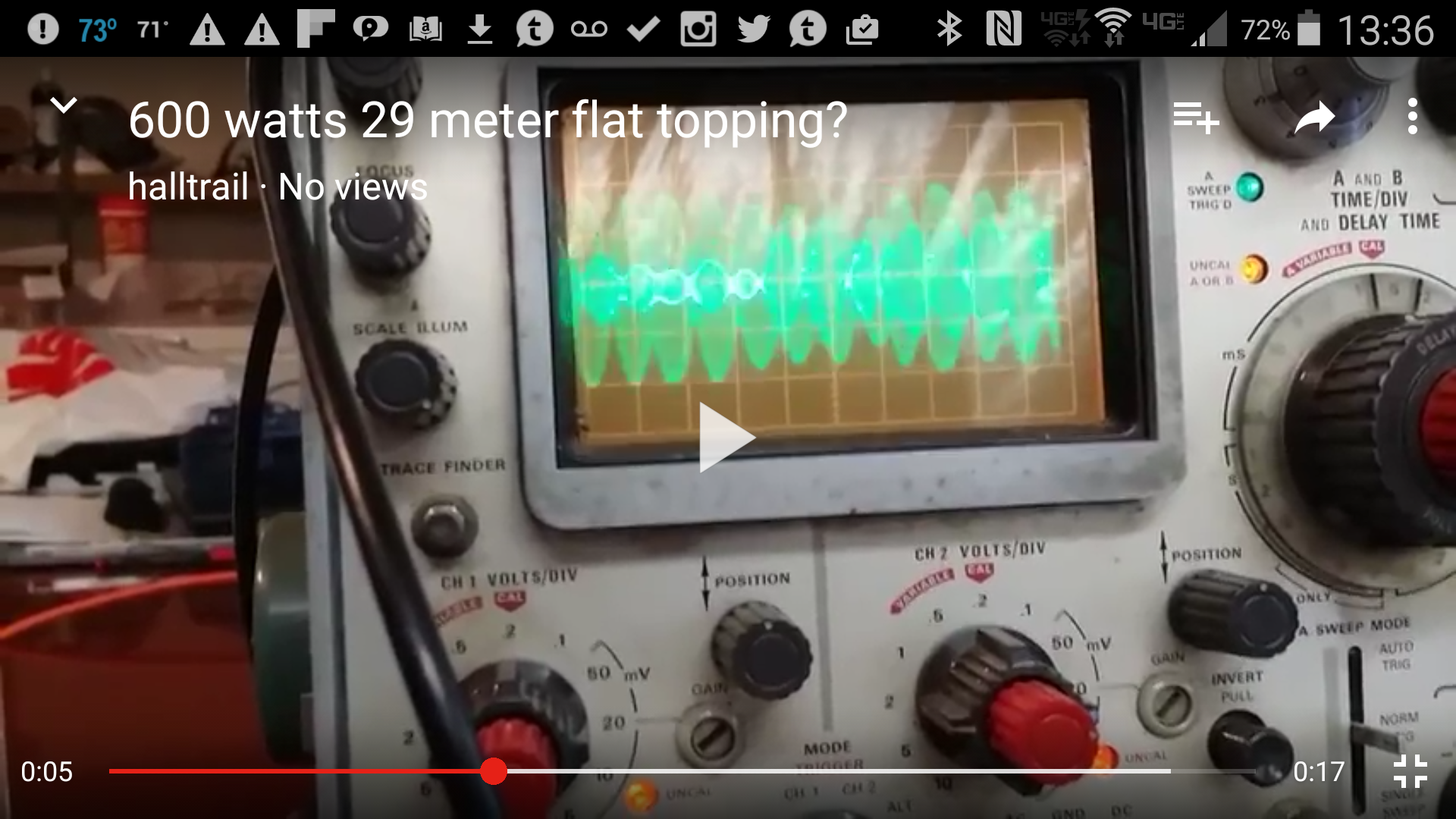

> video of the audio sampled with amplifier putting out  600 watts.  And a
> freeze Fram pic that does look good.
>
> One thing that I'm not sure about is if I have my oscope settings
> correct...as I really have know idea what I'm doing lol.  Hopefully you can
> see some of the settings in the freeze frame. I'm connected to an unused
> antenna output (antenna #2)on an ameritron atr 30 tuner and transmiting on
> antenna 1.  Basically just using the coupling effect to sample the rf..with
> out  having to make or buy an rf sampler.
>
> What do you all think?
>
> https://youtu.be/BP3sy4dx6oM
>
