[GreenKeys] REC-29 Mod Photos

[Tom Hunter]

Here are some photos my REC-29 upgrades.

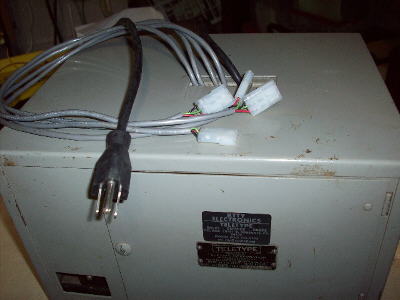

My new cables - a standard power cord,  4 3-pin Molexes for +, ground and -

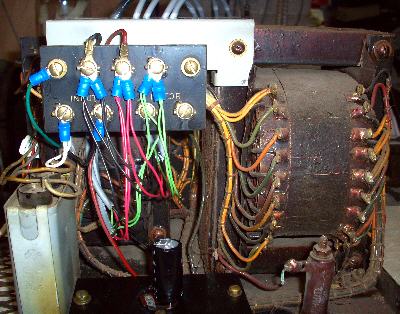

The connections of those cables inside the REC-29..

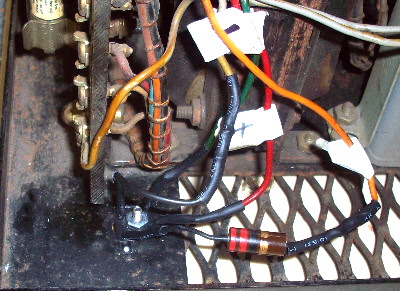

The silicon rectifier and surge protection resistor.

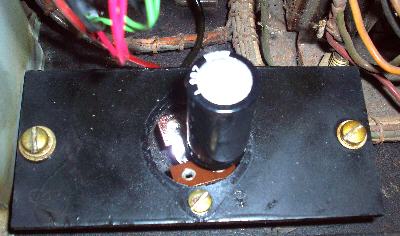

The new filter capacitor - 220 MFD at 200 volts

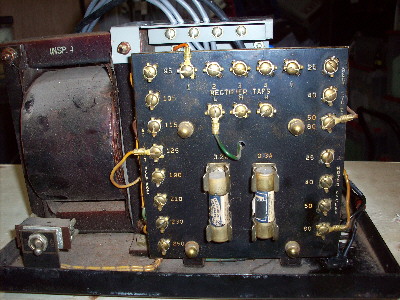

The strapping to get me the lowest DC voltage - 122  volts.

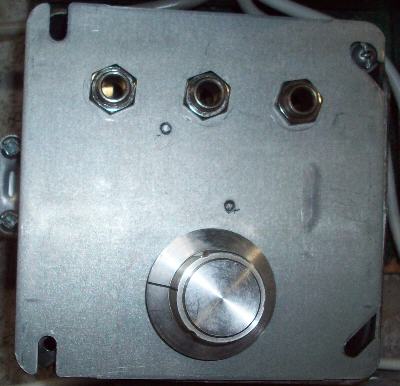

The front of my 60 mil loop supply to run on that voltage.

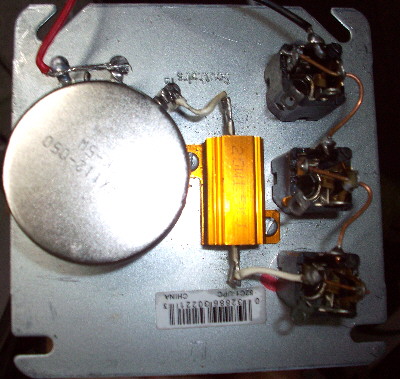

The back of that loop supply,  The 1.5K resistor runs hot enough, that I
used  one that could be bolted to the panel for heat sinking.


Tom   N3CRK
