Gang,

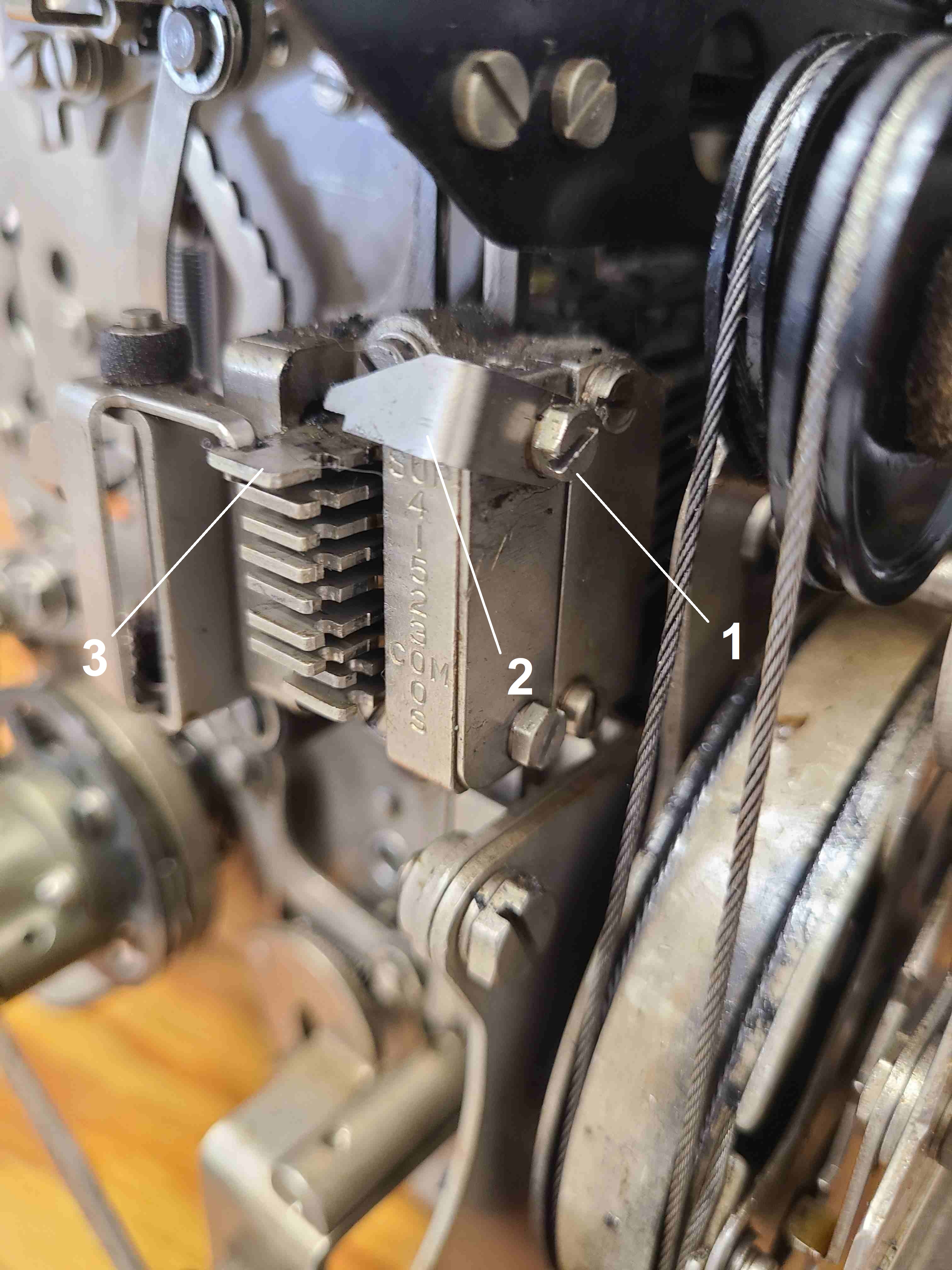

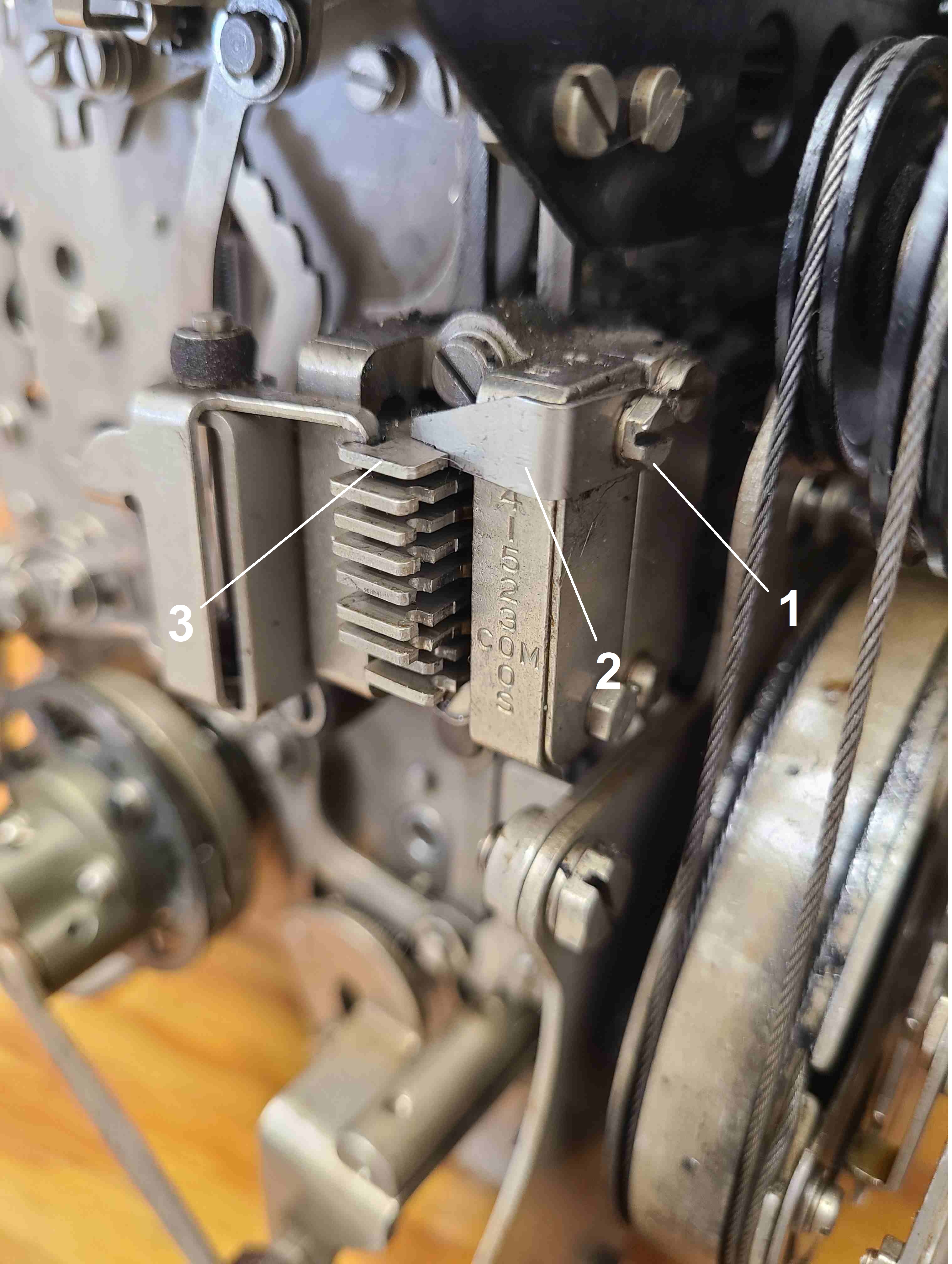

Referencing the attached pics, I ran across a mechanical problem with my
28asr typing unit, that the code bars were changing with the data, but
the main shaft clutch was not engaging rendering the type box
inoperative. Upon inspection on the left side of the typing unit I found
a loose screw that retaining a small flimsy tab that engages the left
end of the top code bar, the "suppression code bar". The tab had lifted
out of the small slot at the end of the suppression code bar, allowing
it to move to the left disengaging a lever that permits the clutch to
engage on the main clutch below. All is working now, but I'm at a loss
for the purpose of this tab. Is it some kind of maintenance link? I have
not found any reference to it in my manuals. Any thoughts are welcome.

Thanks in advance,

ken
