[GreenKeys] anyone know the details of this unit?

[W2HX]

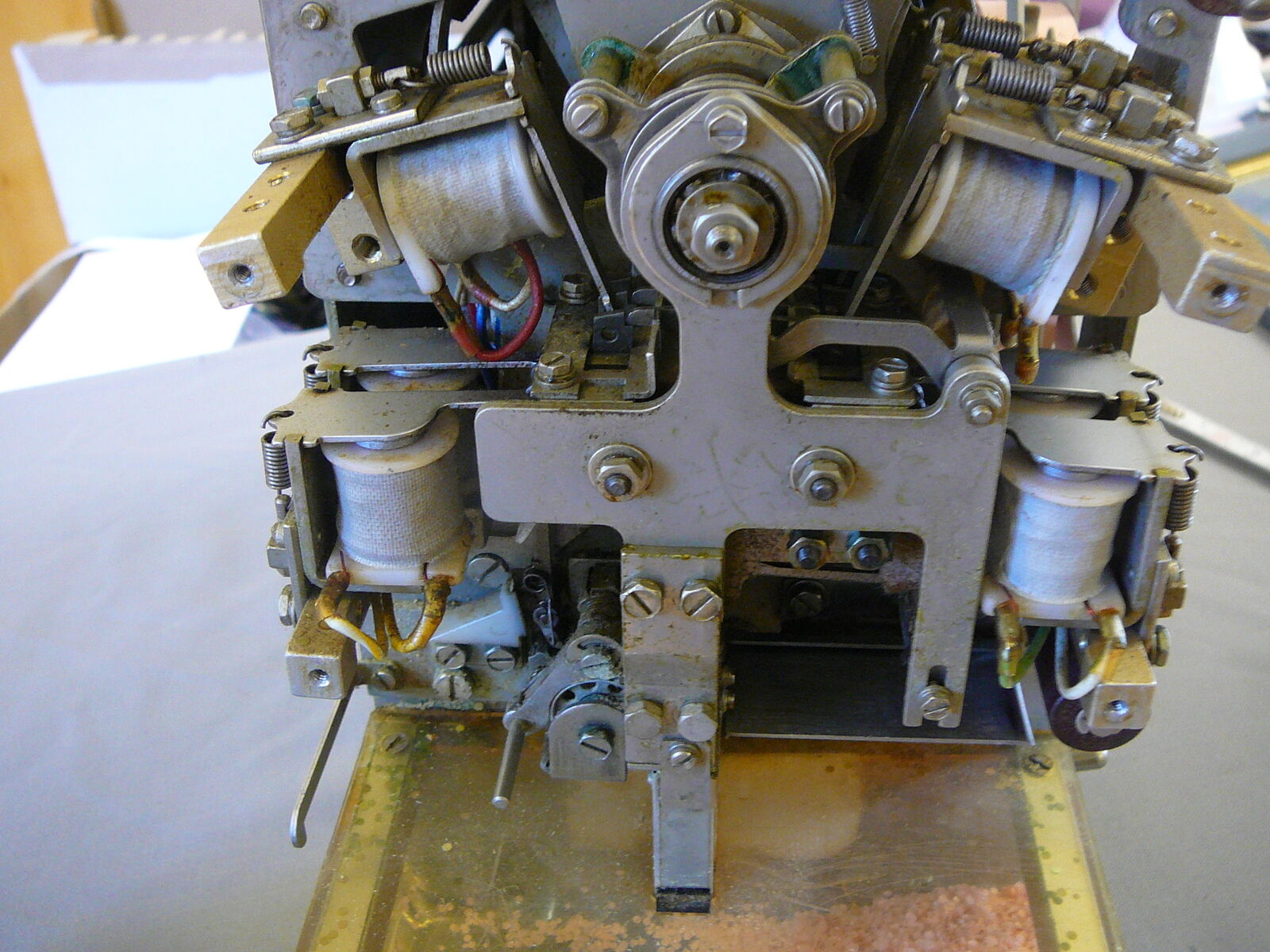

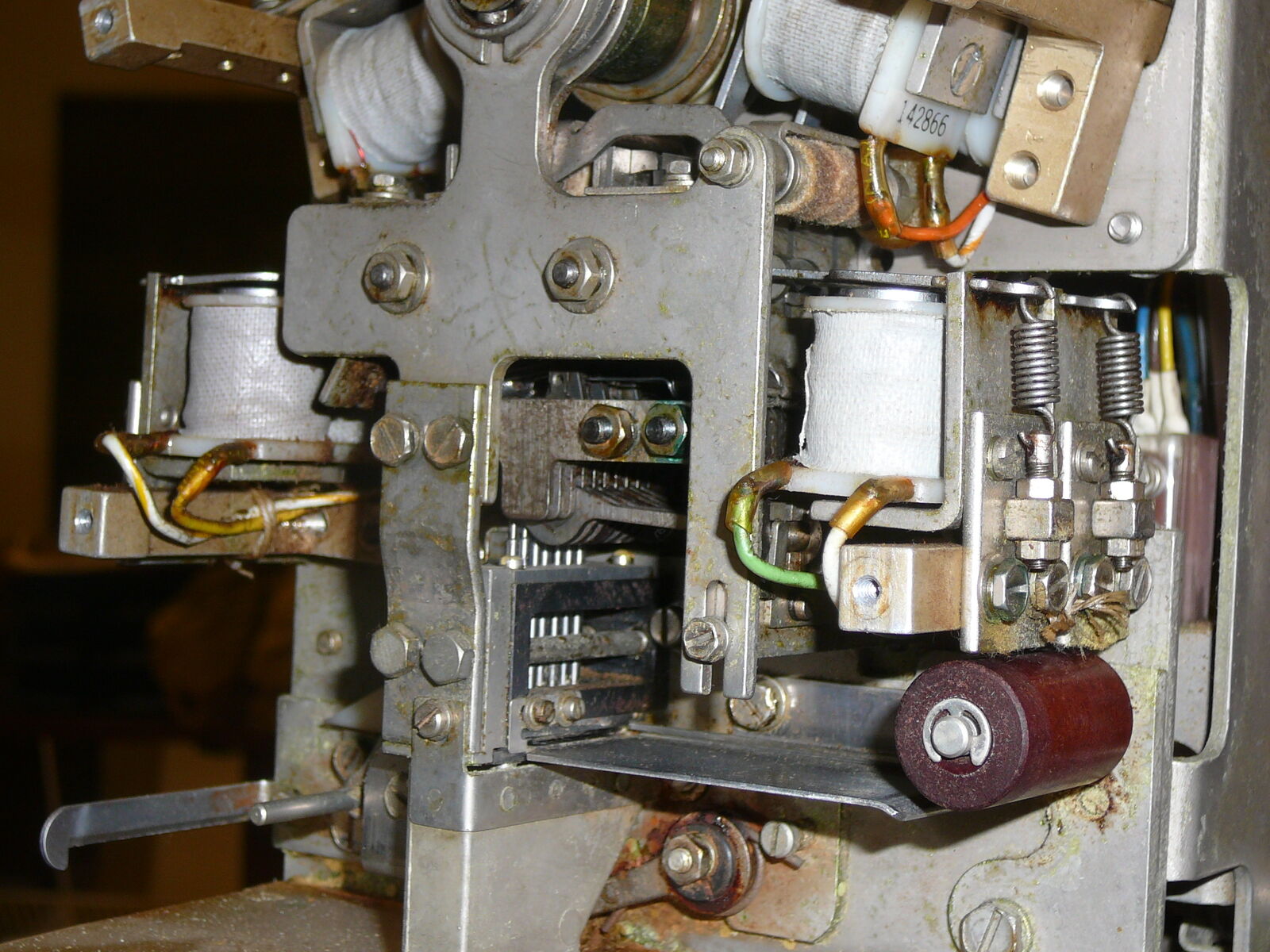

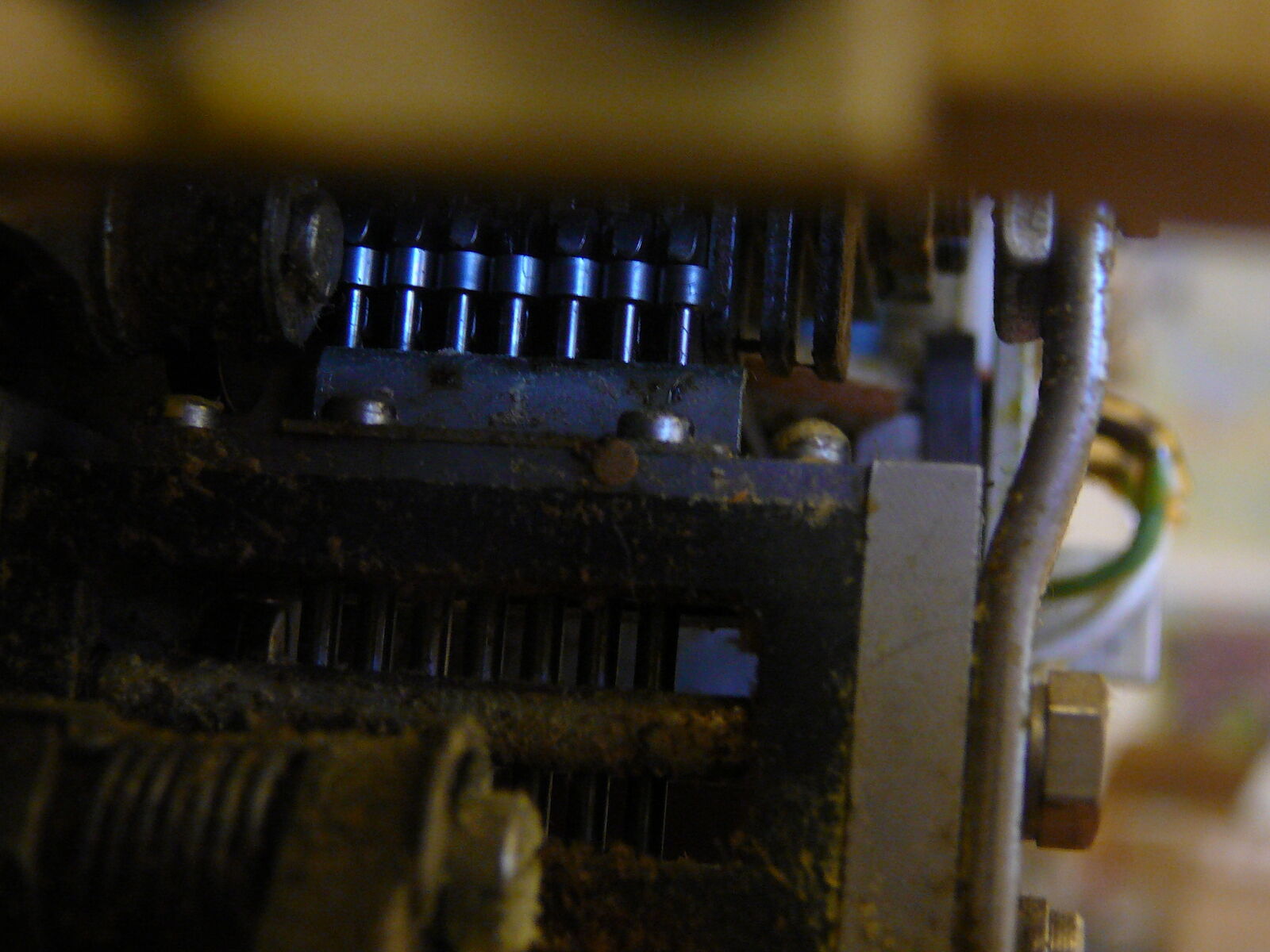

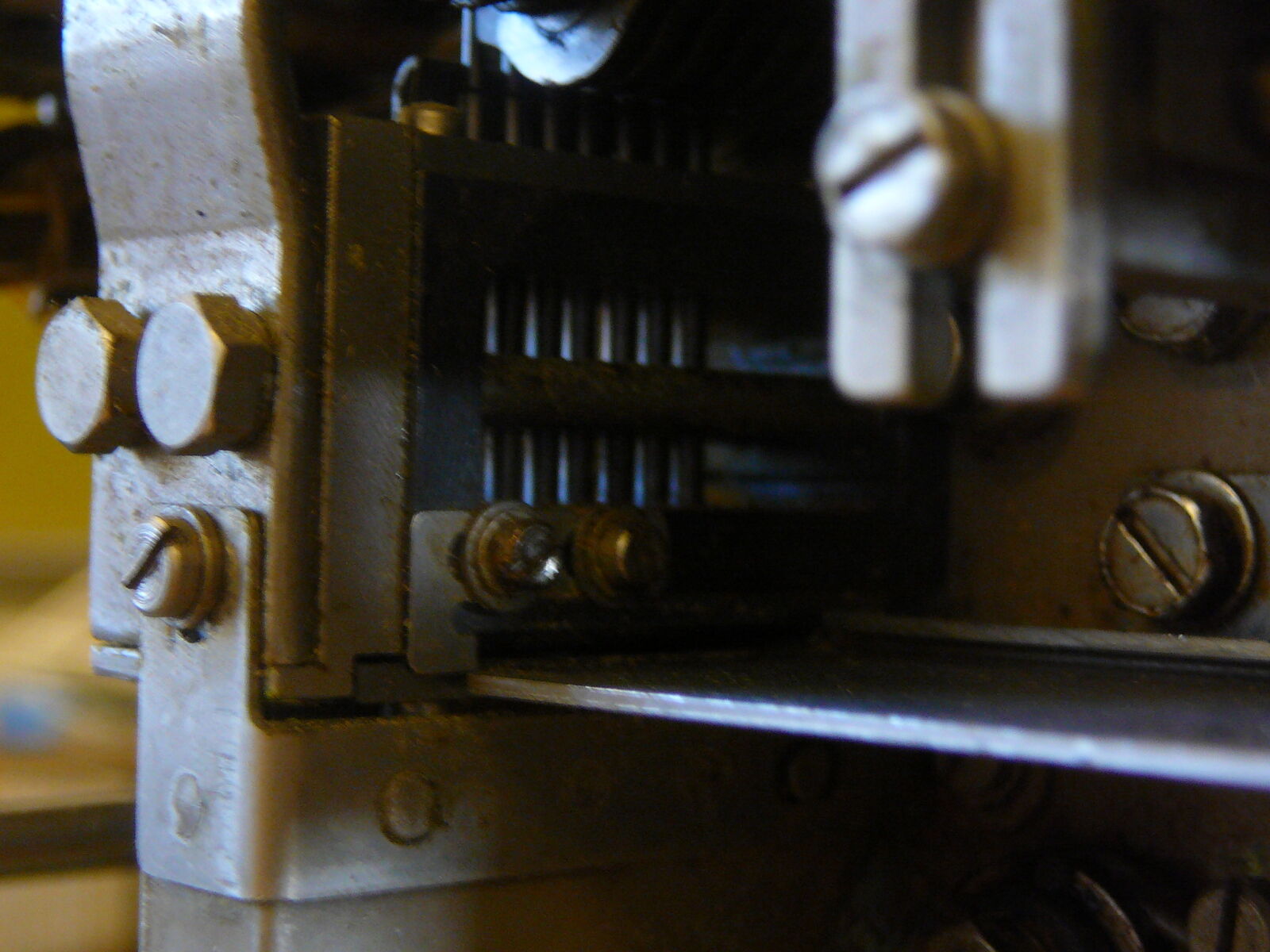

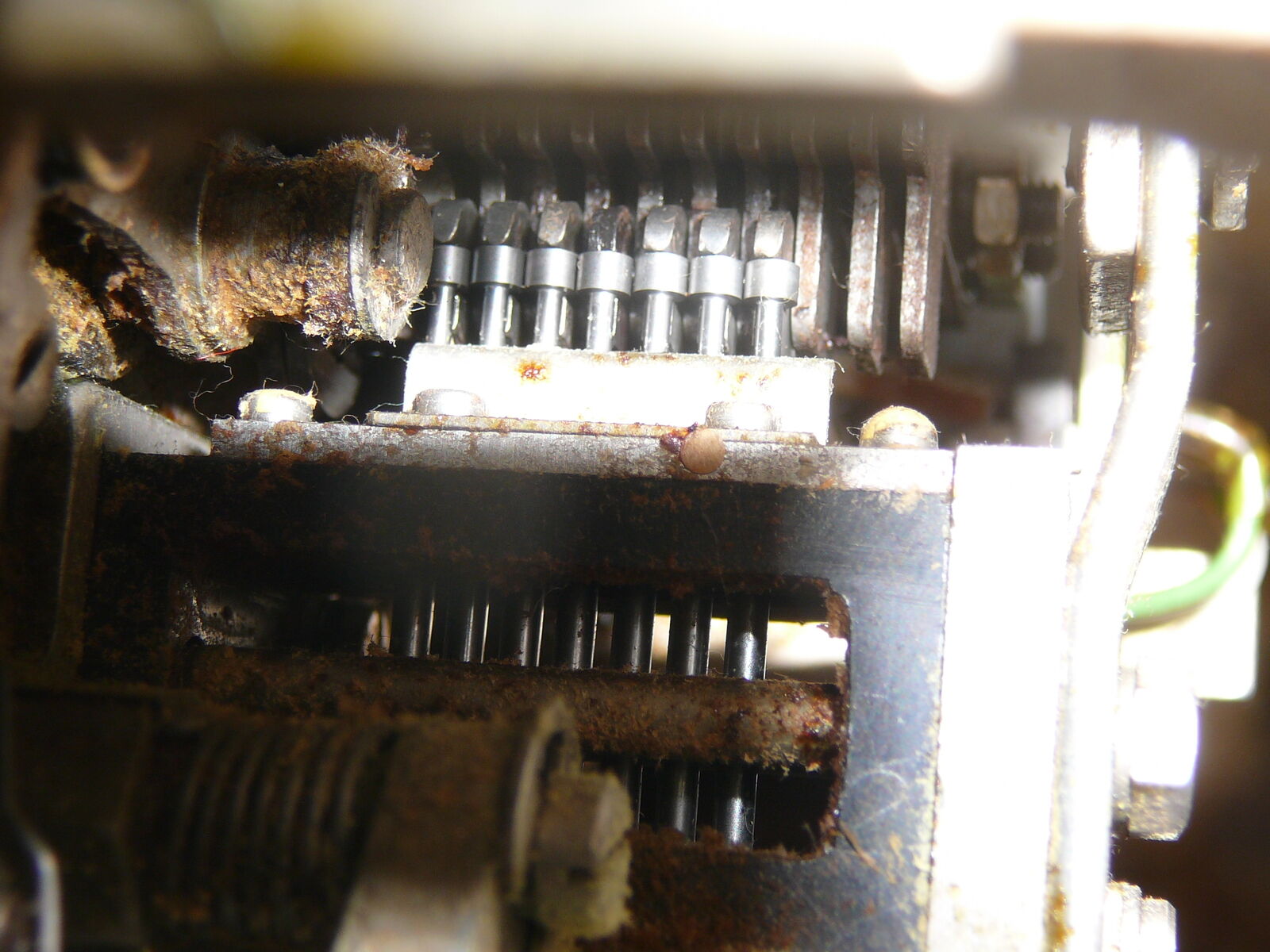

ok more internal pictures. Looks like 7 punches. Does this mean it is a 6-bit (6 data holes, 1 index)?






73 Eugene W2HX
My Youtube Channel: https://www.youtube.com/@w2hx/videos





________________________________
From: W2HX <w2hx at w2hx.com>
Sent: Friday, March 28, 2025 2:16 PM
To: Bob Rosenbloom <bobalan at sbcglobal.net>; greenkeys at mailman.qth.net <greenkeys at mailman.qth.net>
Subject: Re: [GreenKeys] anyone know the details of this unit?

excellent find on that. So I think I'll ask the seller to open the front and try to send a picture, well lit, similar to this picture. And hopefully we can see what this is...

https://www.navy-radio.com/tty/brpe/IMG_7390-ed.jpg

It seems to me that is the best angle to see the punch block.



73 Eugene W2HX
My Youtube Channel: https://www.youtube.com/@w2hx/videos





________________________________
From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> on behalf of Bob Rosenbloom <bobalan at sbcglobal.net>
Sent: Friday, March 28, 2025 1:17 PM
To: greenkeys at mailman.qth.net <greenkeys at mailman.qth.net>
Subject: Re: [GreenKeys] anyone know the details of this unit?

DEC used the BRPE punch on it's Typeset-8 system. They had that knob on the top. See:

http://www.bitsavers.org/www.computer.museum.uq.edu.au/pdf/DEC-08-17TA-D%20Typeset-8%20Systems%20-%20Negative%20Logic%20Maintenance%20Manual.pdf

Bob

On 3/28/2025 8:44 AM, W2HX wrote:
one more picture.  Interesting knob at the top with the label
AVAILABLE
STOP WHEN DONE
CONTINUOUS
OFF




73 Eugene W2HX
My Youtube Channel: https://www.youtube.com/@w2hx/videos





________________________________
From: W2HX <w2hx at w2hx.com><mailto:w2hx at w2hx.com>
Sent: Friday, March 28, 2025 11:37 AM
To: Greenkeys <greenkeys at mailman.qth.net><mailto:greenkeys at mailman.qth.net>
Subject: anyone know the details of this unit?

See pix.  It says "BRPE8 6" from what I can tell.  Also, by the connector it appears to be a parallel unit?
8 level I would assume, but might it be 6 level with the "6" in the model number?
Is it easy for a non-technical seller to remove the cover from the punch block to know more? Does it lift off easily? does it require screw removal?
thx





73 Eugene W2HX
My Youtube Channel: https://www.youtube.com/@w2hx/videos
