[GreenKeys] OT: Help Needed for Microlog ATR-6800 Terminal

[Paul Heller]

Sam is looking for some pinout information. If you can help, reach out to him directly.
Paul
W2TTY

Begin forwarded message:

> From: Sam Reaves <sam.reaves at gmail.com>
> Date: March 2, 2025 at 7:49:17 PM MST
> To: paul0926 at comcast.net
> Subject: Help Needed for Microlog ATR-6800 Terminal
>
>
> Hello Paul,
>

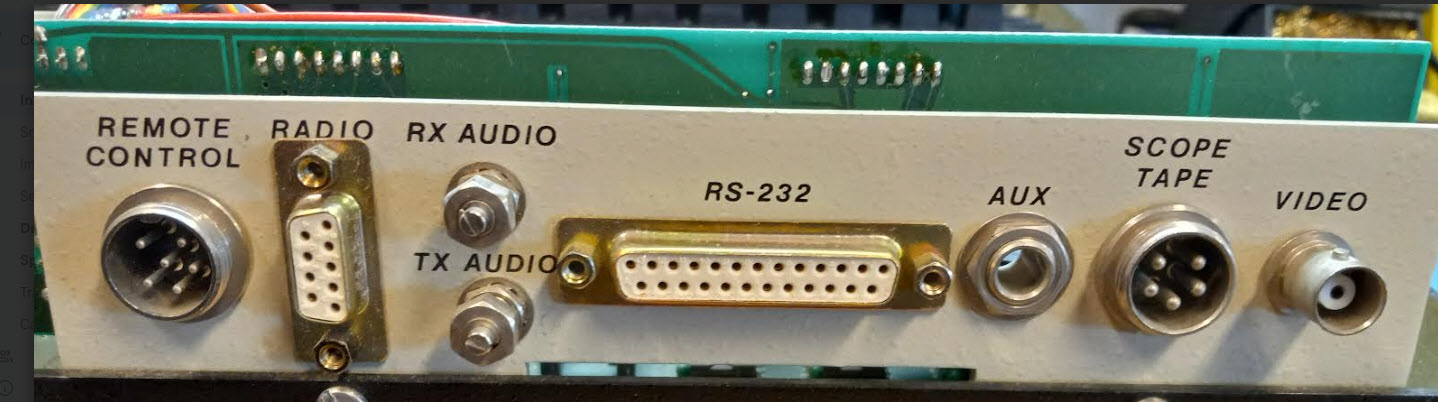

> I am trying to run down hookup information for a Microlog ATR-6800 Morse/RTTY/Amtor terminal. Is there any chance you know someone or someone in the group that might have a manual or know the pinouts to hook the unit to a radio. Below is a pic of the rear panel. The top panel is just a keyboard.
>
> Any help or leads would be greatly appreciated. I am trying to get this unit up and running for W2PRB a 98 year old ham friend of mine.
>
> 73,
>
> Sam
>
>
> Sam Reaves
> ARS W3OHM
> Owner / Moderator of:
> LeCroy Owners Group on Groups.io
> Sencore Owners Group on Groups.io
> Sprint Layout Group on Groups.io
> Pulsonix EDA Group on Groups.io
> LPKF Owners Group on Groups.io
> Electronics and Mechanical Hardware Design Engineering Manager
> Staff Scientist Andritz Rolls Global Research Center (RETIRED)
>
