[GreenKeys] UGC-136 ribbon status update

[John Hargett]

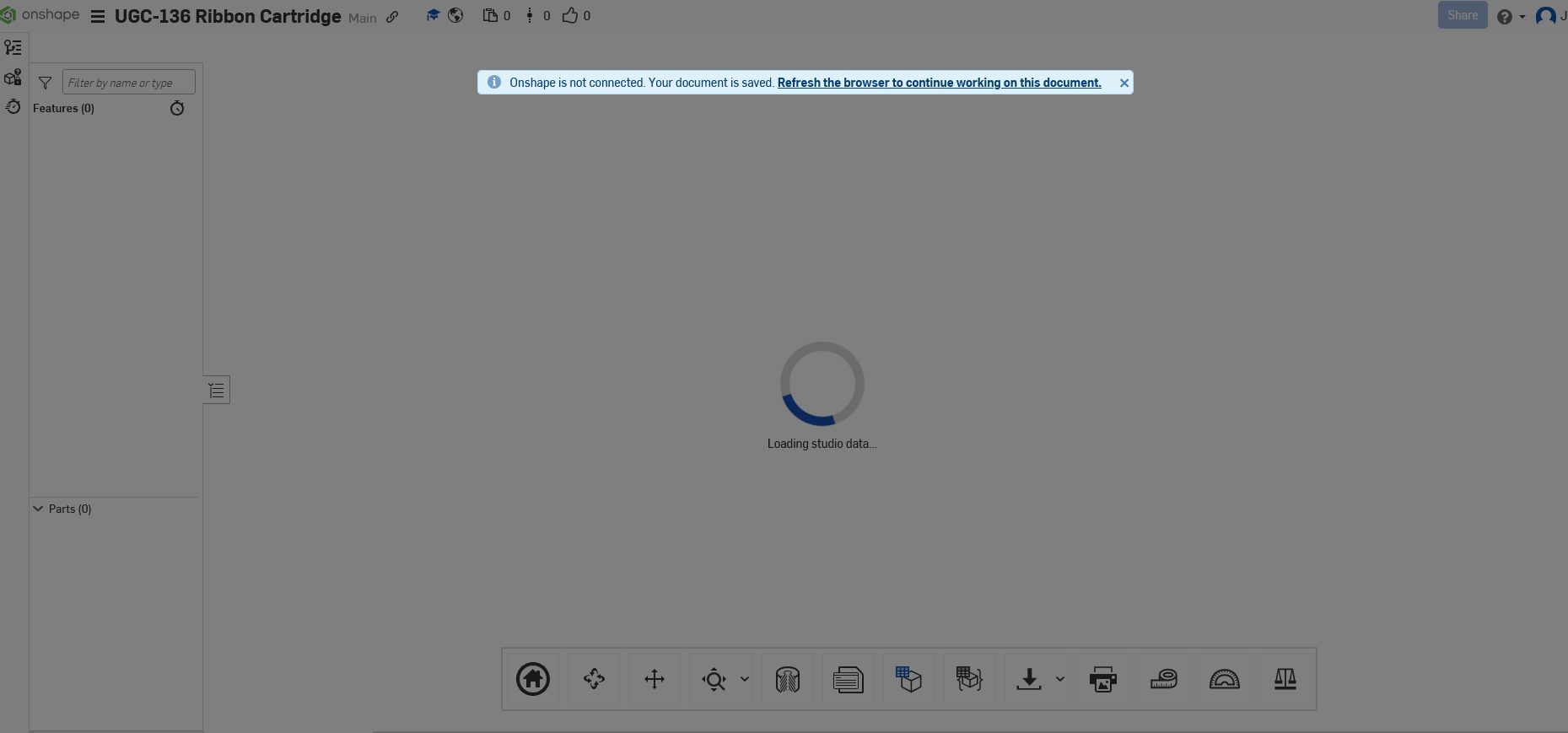

So have tried to look at the Onshape file, and even set up a free
account, but unable to load, doesnt matter which browser I am using and

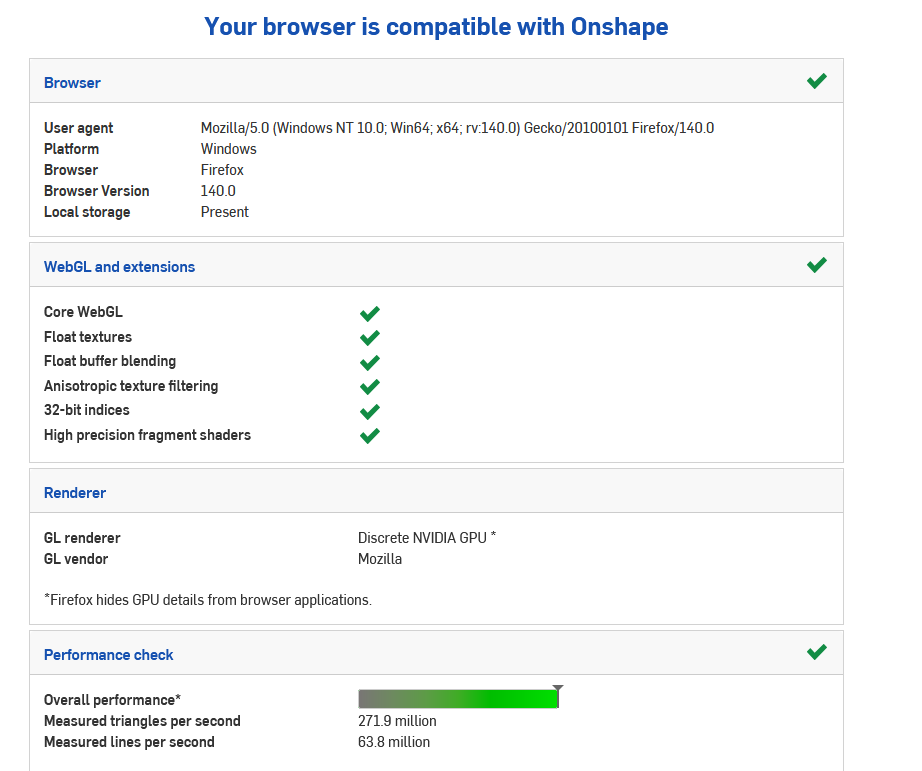

even did a  browser check thru onshape and says that it is compatible ,
never used onshape before, any suggestions?

Can I download the file and open in my 3d print software?


John Hargett
   KG5YLG


On 7/30/2025 2:36 PM, Nick England wrote:
>
> John Toebes has finished the 3D model and says-
> ------
> The model as it stands is public
> (https://cad.onshape.com/documents/cdc3f96f11393c190fe11103/w/d390734d64166e3974a43552/e/5db85b6313ad37598d4c25e0?renderMode=0&uiState=688a32f04b5cd462bd1047da
> <https://cad.onshape.com/documents/cdc3f96f11393c190fe11103/w/d390734d64166e3974a43552/e/5db85b6313ad37598d4c25e0?renderMode=0&uiState=688a32f04b5cd462bd1047da>)
>
> and if anyone else wants to take a stab at printing or editing, I’m
> all ears.
> ---------
> John is investigating the best way to print, regarding smoothness,
> supports, etc.
>
> Michael Katzmann reports on the German eBay ribbons
> Note - I think the eBay buy it now price has jumped from $75 to $95
> plus shipping.
> -------------------------------------
> Michael says
>    The NCR ribbons from Germany are perfect.
> You can see the comparison between the original (that was in the
> machine for 30 years) and the NOS ribbon I just installed. (the new
> ink is dark violet).
> [yes the photo looks really good - Nick]
> Yes, it's pricey ... I paid around $100 (for four) with shipping.
> 1 item    $55.00
> Shipping  $38.28
> Tax*      $5.60
> Order total  $98.88
> (I made an offer and accepted the counter offer of $55 but think the
> price has gone up since I purchased them)
> https://www.ebay.com/itm/224506008457
>
> ----------------------------------------
>
> Nick England K4NYW
> www.navy-radio.com <http://www.navy-radio.com>
>
>
> On Tue, Jul 29, 2025 at 9:52 AM Nick England <navy.radio at gmail.com> wrote:
>
>     Michael Katzmann has ribbon cartridges on the way from the German
>     eBay source and will let us know if they are the correct ones.
>     They had made it from Germany to NYC at last report.
>
>     John Toebes has completed a 3D model of the ribbon cassette and
>     his test print looks really nice. I will install and test his
>     final version and let everyone know. I’ll also evaluate new ribbon
>     sources.
>
>     Finally, don’t forget to adjust the print head position lever.
>     Mine came with the head fully retracted and I thought “dry ribbon”
>     until I realized what was happening. Now it is very happily printing.
>     https://www.navy-radio.com/tty/ugc136/print-head-adjust.jpg
>
>     I keep adding observations and hints at
>     https://www.navy-radio.com/tty/ugc136.htm#hints
>
>     Cheers
>     Nick England K4NYW
>     www.navy-radio.com <http://www.navy-radio.com>
>
>
