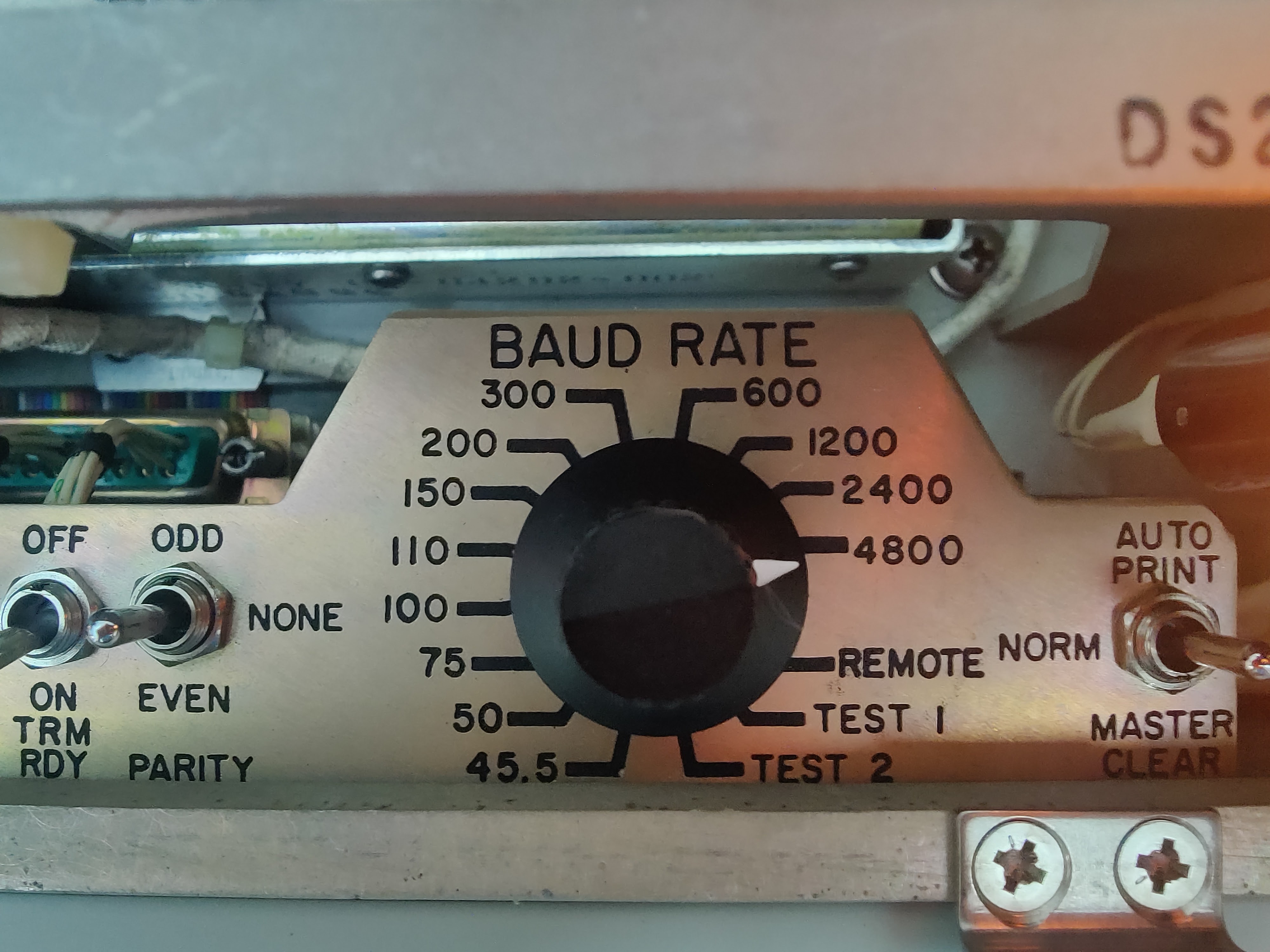

This speed thing is a curious issue. I have seen discussion of needing a speed converter, but the picture below from Michael shows 45.45 baud. Has anyone confirmed the UGC will actually work for 45.45 using this setting?




73 Eugene W2HX
My Youtube Channel: https://www.youtube.com/@w2hx/videos





________________________________
From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> on behalf of Michael Katzmann <vk2bea at gmail.com>
Sent: Tuesday, July 22, 2025 6:30 PM
To: Green Keys <greenkeys at mailman.qth.net>
Subject: [GreenKeys] UGC-136BX sending data

So far the only thing I'm having issue with is sending data from the UGC-136BX..
I get nothing on pin 2 when typing on the keyboard. I gel local echo but no change in the voltage on pin 2.
I've tried setting pin 3 (TX1NH1C) to +6 and to -6V but with no success.
Before I delve into the circuit, if another Greenkeyer has successfully transmitted from the TTY, please let me know the switch settings and if you need to tie pin 3.

I might try port 2 (there seems to be three on the 25 pin connector according to the manual)

BTW I think it was stated that the unit does not do 45.45 Bd ... it does.

Michael
