[GreenKeys] Model 33 Q1 transistor replacement

[Chuck Rehor]

Paul, are you sure it isn’t the big resistor? It sure looks toasty.

On Mon, Jul 21, 2025 at 12:16 PM Paul Newland, ad7i <ad7i at ad7i.net> wrote:

> It's probably not all that difficult to find a working replacement, but in
> a different form factor.   Can you show a larger portion of the schematic?
> I'd like to see if this transistor is operating as an on/off switch, or if
> it's trying to work some magic to regulate the voltage on the magnet for
> fast pull in and then low current idle.
>
> Some basic DC measurements might give you some insight into the health of
> the transistor without removing it from the circuit board.
> I'd be curious to know the voltage from base to emitter when the
> transistor is "ON" (or supposed to be on).   Also (can't see that part of
> the schematic) but if there's a resistor in series with the base I'd be
> curious to know the voltage across the resistor (and the resistance of the
> resistor), and then use ohms law to determine the base current.  Same thing
> for the selector magnet current, if that's possible.
>
> Paul, ad7i
>
>
> On Mon, Jul 21, 2025 at 10:22 AM Erik Bruchez <erik at bruchez.org> wrote:
>
>> Hi all,
>>

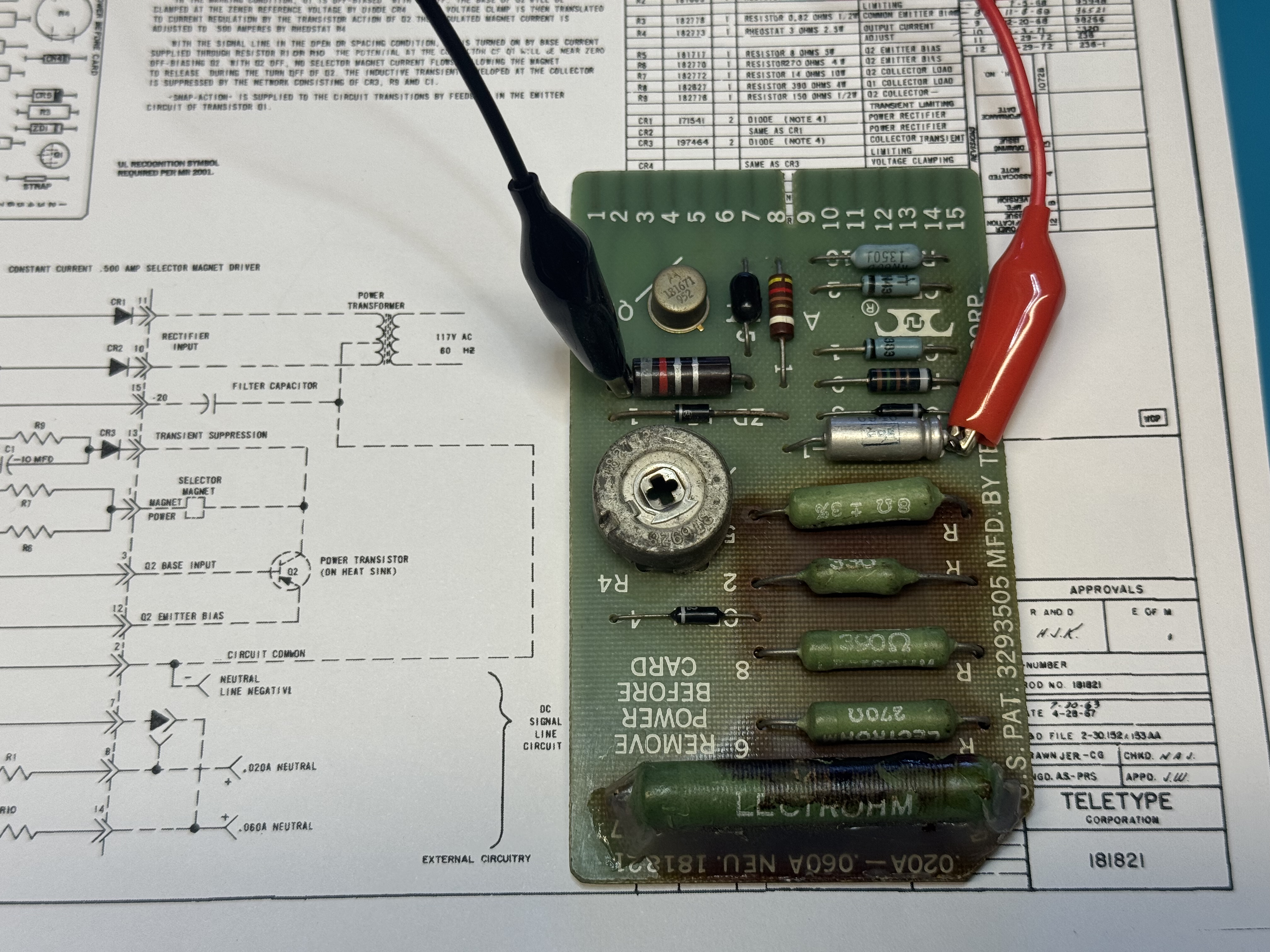

>> I am trying to troubleshoot a Model 33 selector magnet circuit. I don't
>> know for sure yet but there is a chance that it's the Q1 transistor on the
>> board. I am wondering if anybody here has ever replaced this transistor,
>> and if so with what (possibly more modern) part. The original is
>> Motorola-branded and labeled 181671. The schematics call it a "high gain"
>> transistor.
>>
>> -Erik
>>
>> [image: C6BC2216-1423-4DCB-A6BF-7869D424140C.JPG]
>>
