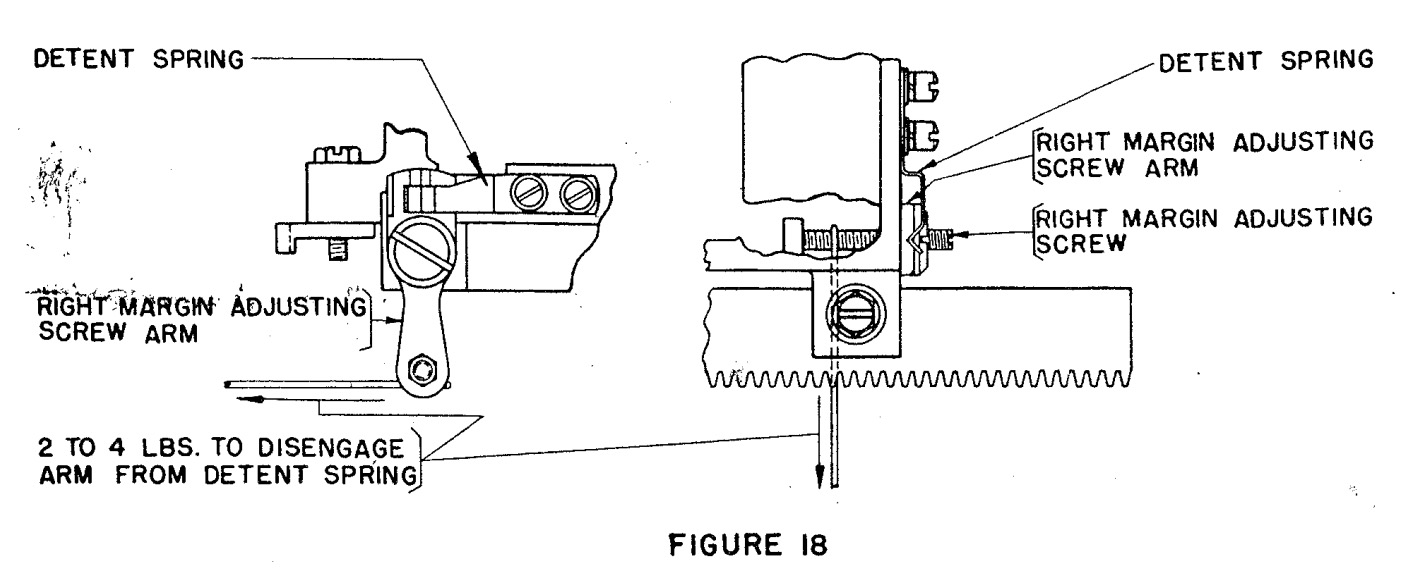

I really feel like I’m not much help — should throw the cover off of my 19 to look… but if you haven’t already — and if memory serves, I think the “Right Margin Adjusting Screw" in the image attached might help solve the carriage return… or at least I remember there’s a screw that hits a lever that makes the carriage return and it may need adjusting…..

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screenshot 2025-01-31 at 6.56.14?PM.jpg
Type: image/jpeg
Size: 137310 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20250131/d2443972/attachment-0001.jpg>
-------------- next part --------------


> On Jan 31, 2025, at 6:41 PM, steve bennett via GreenKeys <greenkeys at mailman.qth.net> wrote:
>
> GKs,
>
>   Getting closer every day. Starting to see the light at the end of the tunnel.
> Got the linefeed working. I had installed the blade on the control characters bail
> with the bevel facing the wrong direction. Corrected that and now the linefeed is working.
> Still no carriage returns though. That's funny because the carriage return would sometimes work
> when I was printing gibberish at the wrong baud rate.
>  Getting there. I'll figure out the CR tomorrow hopefully.
>
> Teletype model 15 printing at 50 baud
>
> Teletype model 15 printing at 50 baud
> Discover topics like teletype, and the magic of the internet at Imgur, a community powered entertainment destina...
>
> -Steve
