[GreenKeys] Power Information for the UGC-136

[Eric Moore]

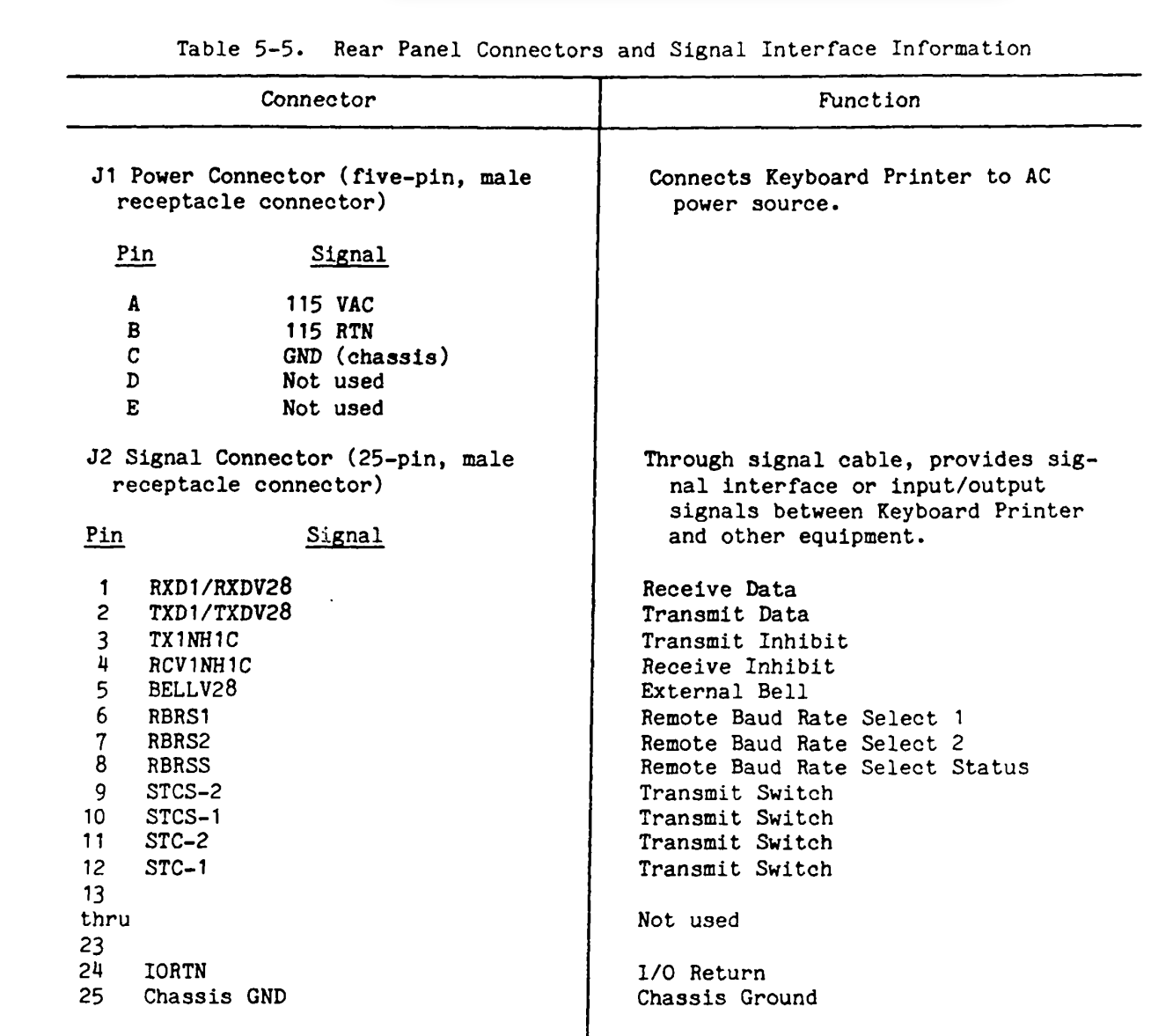

J1 Power Connector (five-pin, male receptacle connector) Pin Signal

A115 VAC
B 115 RTN
C GND (chassis)
D Not used
E Not used

Connector MS3116F14-5SW

>From https://www.navy-radio.com/manuals/tty/ugc136ax-EE161-HA-OMI-010.pdf
