[GreenKeys] 60 Mil Patching

[MIKE MCAULEY]

I guess I should attach pics...








  On Mon, Sep 23, 2024 at 6:33 PM, MIKE MCAULEY<mmcauley at cox.net> wrote:   FWIW, this is how I do mine.

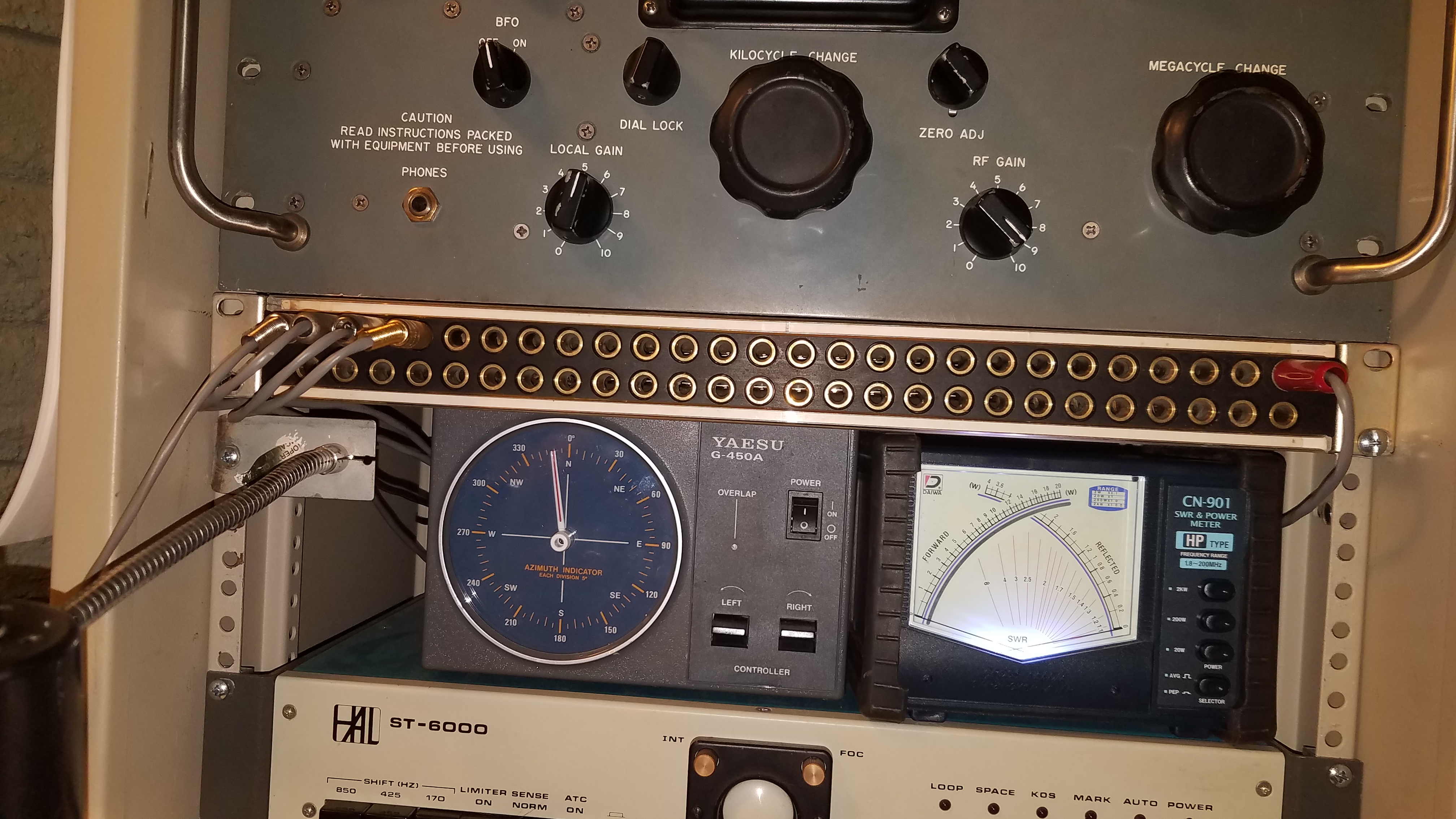

52 bay telco switchboard patch panel, rack mounted. Only takes up one rack unit. All jacks (TS) wired in series. I have the HAL ST6000 TU providing the loop current (red plug at far right). Plug-ins for the 28KSR, 15TD, TT-253/UG typing reperf, and finally a 100ma meter. LOTS of room for future add ons.
Just my .02
MikeKD7VRG





  On Mon, Sep 23, 2024 at 6:15 PM, Tom Hunter<tomhenryhunter at gmail.com> wrote:   Anthony,
How many jacks do you need in your patch panel?Do you need Tip/Sleeve jacks or Tip/Ring/Sleeve?I use both,, but TRS is safer. I buy TRS plugs by the tens on eBay.I build my own patching on Electrical boxes.Don't forget a jack for a 100 ma meter. to check your loop current

If you don't have a meter, check out eBay.I always monitor my loop currents.You get a feel for how the meter should lookespecially on RYs.
Attached pictures include 3 TS jacks withshoulder washers and flat washers.
3 TRS jacks and 6 TRS jacks.I can mount as many as 9 jacks on a 4x4 box.
The last picture shows a homebrew loop supplyand shows how I mount my meters.


Tom   N3CRK
