[GreenKeys] Model 28 KSR wall mount model

[John, W9DDD]

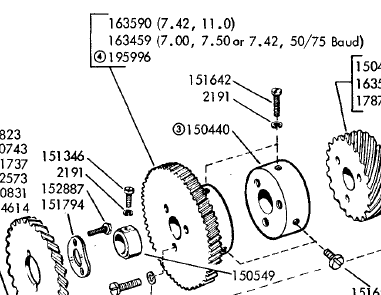

So further research shows that 195996 is the driven gear on the LP
(printer) main shaft.

above from 573-115-800 at the usual website

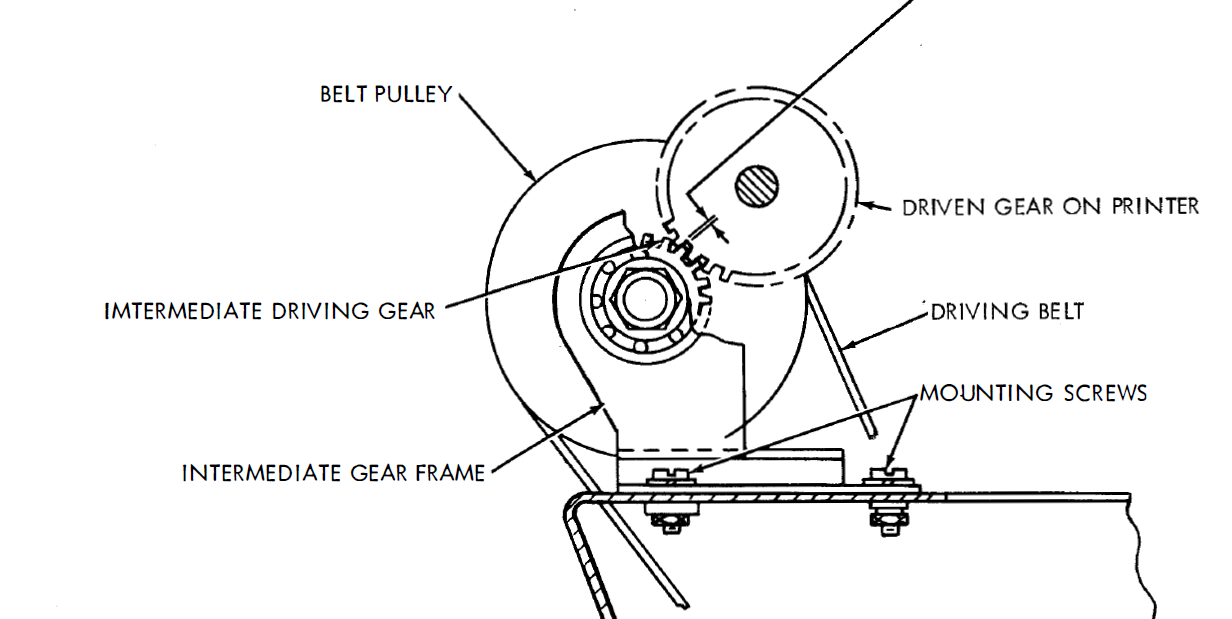

 From the installation instructions (573-100-201)

So what is call the driving gear above can be any of 3 numbers, 195999
for 60 speed, 195993 for 75 speed and 195997 for 100 speed.


On 9/13/2024 7:39 PM, John, W9DDD wrote:
> Page 35 of:
>
> https://navy-radio.com/manuals/tty/573-116-800-iss3-7107.pdf
>
> shows
>
> so it's likely that 195996 is the driven gear for 100 speed.
>
> Strangely going to the index to see if 195996 showed up on another
> page, it wasn't listed.
>
>
>>> The speed has me stumped, the large
>>> gear has 195996 stamped on it, but I
>>> cannot find that part anywhere in
>>> any of the gear parts lists I have
>>> found, about 5 lists.
>> elivered to w9ddd at tapr.org
>

--
---
----
The above comments or recommendations are SWAG. Use at your own risk.

John, W9DDD
