[GreenKeys] Model 28 Selector Color Codes for Virgil

[Tom Hunter]

[image: 28 Selector Wires.JPG]

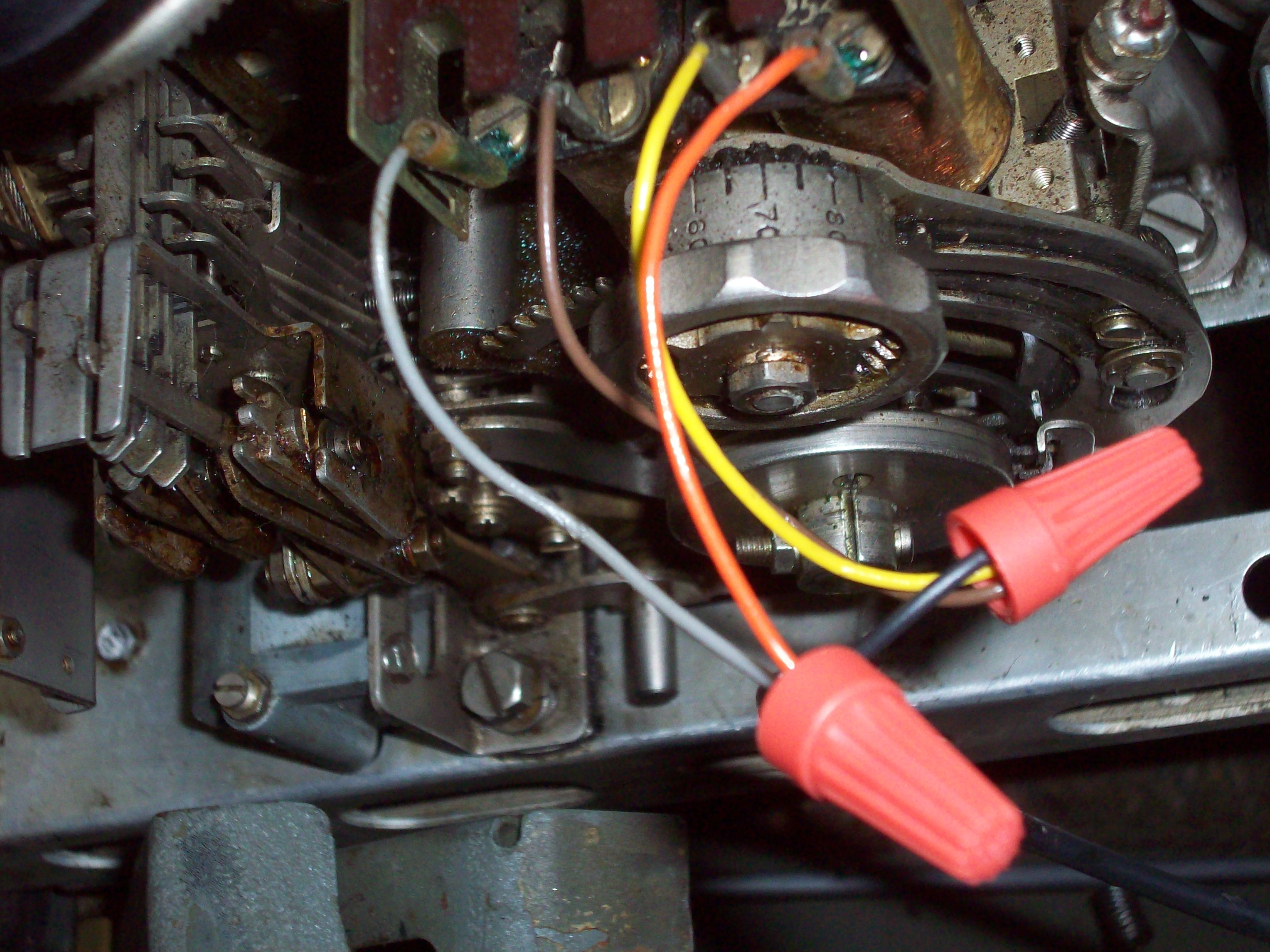

This was crude, but it worked for 60 mils.. Study the color wires going
into
each wire nut.

Each wire nut was connected to one conductor of a two wire cable that ran
out of the machine.

Tom  N3CRK
