[GreenKeys] [External] Model 33 parts

[Eric Moore]

https://octopart.com/bom-tool/vyRgzMv1

This is a BOM for the model 15 adapter at:

https://deramp.com/model15_interface.html

Does not include the generic resistors and caps, but everything else is
there. Should make it easier for the next guy :)

-Eric

On Fri, Jan 20, 2023 at 6:11 PM Eric Moore <mooreericnyc at gmail.com> wrote:

> Thank you for the suggestion, I will look into it.
>
> I am purchasing the 60ma adapter board and pre-programmed PIC from Mike,
> just need to put together a digikey cart :)
>
> Once I have the board assembled I will likely post about the 14, I have a
> keypunch I am working on but I hope to have it repaired soon.
>
> -Eric
>
>
>
> On Fri, Jan 20, 2023 at 5:48 PM Jeff G <jeffg at junknet.net> wrote:
>
>> AH Finally saw this pic - I wonder if some older 1A2 style buttons would
>> fit there! Personally, I'd get some good high res pics/scans to recreate
>> it, and repaint it, and maybe get a t-shirt silk screening place to redo
>> the art. I'm all about keeping things original original but thats really
>> skimming that fine line of patina vs something else.
>>

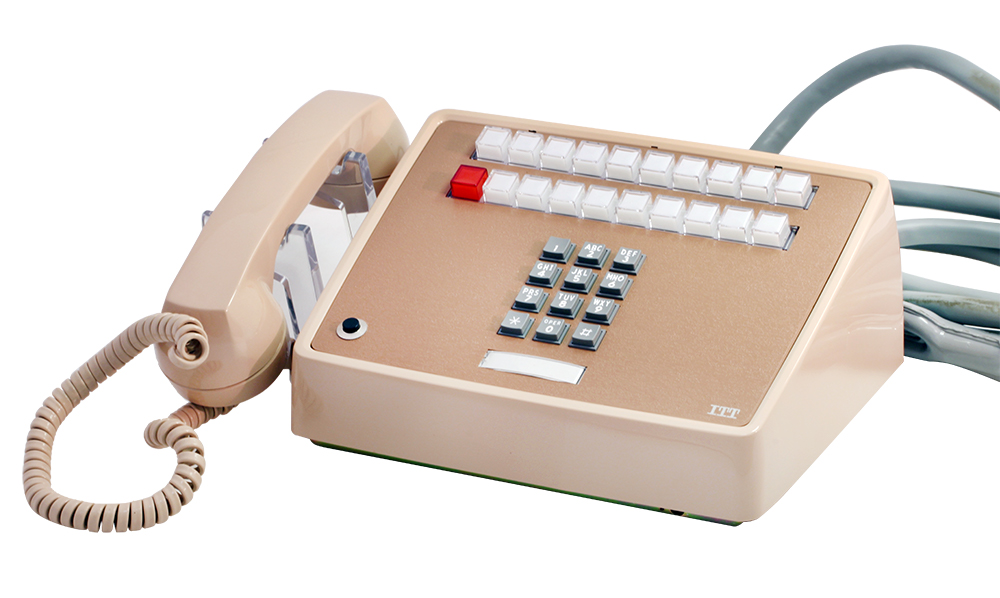

>> 1A2 style buttons like this (not the smaller clear ones the normal 33 TWX
>> would have):
>>
>> [image: image.png]
>>
>>
>> Jeff
>>
>> On Fri, Jan 20, 2023 at 1:56 PM Eric Moore <mooreericnyc at gmail.com>
>> wrote:
>>
>>> Yeah, a 3d printed clip would make a lot of sense. I will add it to the
>>> pile o' projects and see if I find a roundtuit :).
>>>
>>> I have attached a photo of the panel. If I could find one more of those
>>> buttons, I could try making a transparent sticker wirh the printing cleaned
>>> up and removing the original damaged printing using acetone. Quite a
>>> project, but if a replacement is not available from a parts machine it may
>>> be my best option.
>>>
>>> Thanks all,
>>>
>>> -Eric
>>>
>>>
>>>
>>> On Fri, Jan 20, 2023, 12:26 PM Gillian Webb <thaeli at magfest.org> wrote:
>>>
>>>> I need to make a similar repair. Was considering using Sugru, or 3D
>>>> printing a new version of the broken off bit and epoxying it in.
>>>>
>>>> Not sure when I will have time, but the 33 "Teletype" metal faceplate
>>>> looks easy enough to make out of an aluminum sheet and the printing
>>>> something that wouldn't be hard to clone with a laser cutter and some
>>>> Cermark.
>>>>
>>>> That stamped radius edge on the modem blanking plate would be a pain
>>>> though. I'd be inclined to mill it from bar stock and paint to spec if the
>>>> original paint can still be sourced, but that gets a bit more pricey.
>>>>
>>>> - Gillian
>>>>
>>>>
