Note - The U-shaped transfer lever is actuated by the punch slides, not the
other way around. So if the U-shaped transfer lever doesn't move, that is
probably not a cause of the problem, but a symptom.
I think John is right in that the punch slide reset bail is not releasing
the selected punch slides to go leftwards.The punch slide latches appear to
be getting rotated CCW by the selector push levers as they should..The
function clutch must be getting released OK or otherwise the typewheel
wouldn't be operating.
So that leaves the punch slide reset bail holding up the punch
slides....The perforator trip lever releases that reset bail via the reset
bail trip lever.

You should be able to rotate the reperf by hand to see if that is the case.
Use a dental pick or the like to activate some punch slide latches.
Following what is happening when motor driven is hard to do - if you take
it off the base and rotate the main shaft by hand, you can pick it up and
look underneath, and clearly see the punch slide reset bail, etc.
Careful reading of the description of operation is essential to
understanding what should happen.
In my mind, the manuals were unfortunately written to
a) act as a guide when getting patient hands-on classroom instruction
b) act as a refresher for folks who are repairing their 85th reperf....

Good luck,
Nick England K4NYW
www.navy-radio.com


On Tue, Jan 31, 2023 at 9:05 PM W2HX <w2hx at w2hx.com> wrote:

> Yes I fully agree. I think that is what I have to track down next. I’d
> love to see a slow mo video of such a thing working correctly. I guess I
> could remove this one and replace it with my old LPR and take a video. If
> anyone happens to have a video (or url to a video) I’d love to see it,
> would save me from swapping LPRs again. If not, that is my next course of
> action.
>
>
>
> Have a great night everyone!
>
>
>
> 73 Eugene W2HX
>
> Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx/videos
>
>
>
>
>
> *From:* Jim Cooper <jim.w2jc at gmail.com>
> *Sent:* Tuesday, January 31, 2023 7:01 PM
> *To:* W2HX <w2hx at w2hx.com>; Greenkeys <greenkeys at mailman.qth.net>
> *Subject:* Re: [GreenKeys] LPR 35 Slo Mo VideO
>
>
>
> On 31 Jan 2023 at 23:35, W2HX wrote:
>
> > I'm all ears for things to try  next.
>

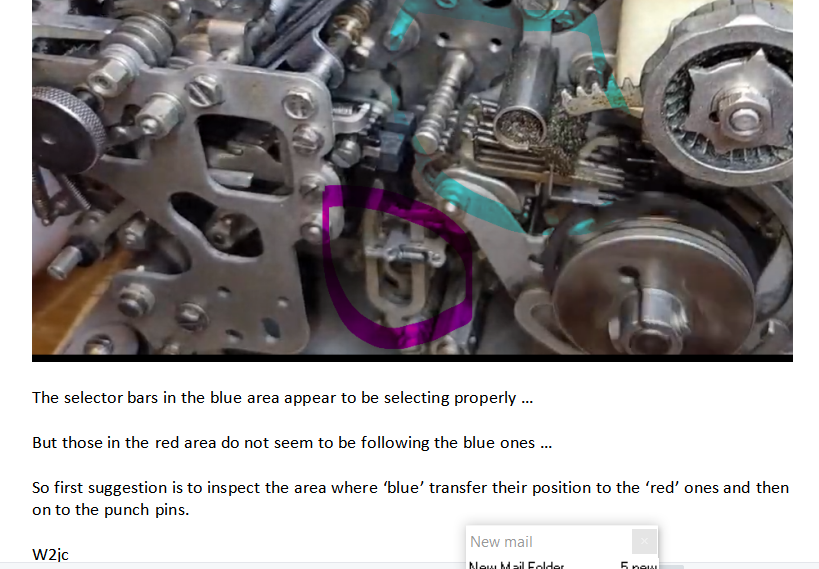

> [image: graphic]
