[GreenKeys] How hot is too hot? (Teletype 32)

[Jeffrey Golas]

Unless you plan to leave it on 24/7 I dont think its needed. They all ran super hot and are still around to tell about it. Ill compare your CCU to mine but that may be a normal Telex CCU.

I have a 33 that has a telephone cradle built into it, and it completely enclosed the CCU. That poor thing is BAKED!

I like the WU logo on the dial too - are you in the US?

Jeff

> On Sep 5, 2022, at 11:34 AM, Andy KN4UCL <kn4ucl at gmail.com> wrote:
>
>
> if I was to secrete a small fan in there somewhere just to move the heat around... any thoughts about where I could safely steal 5 or 12v from my Teletype?
>
>> On Mon, Sep 5, 2022 at 11:31 AM Andy KN4UCL <kn4ucl at gmail.com> wrote:

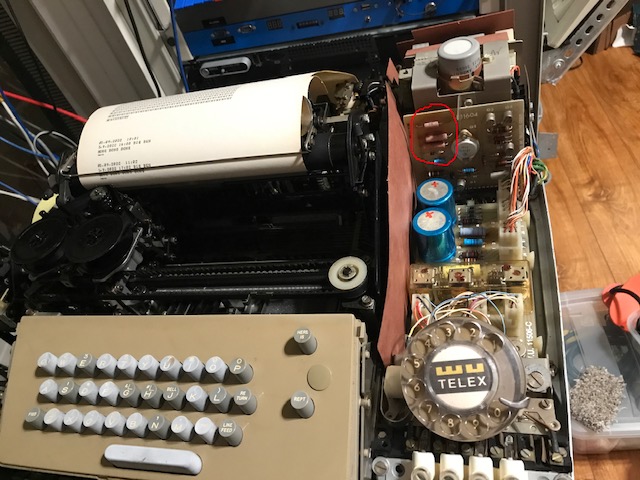

>> Hey Jeff - I did a modification to some of the resistors to change from 60 to the 40ma loop current (European) standard used by i-Telex. Apart from the heat, it seems to run i-Telex just fine 😁  Attached is a better photo (red circle where things are hot) ... cheers!
>>
>>
>>
>>
>>> On Mon, Sep 5, 2022 at 10:42 AM Jeffrey Golas <jeffg at junknet.net> wrote:
>>> Can you take another pic but zoomed out/farther out?  That looks a lot different than Im used to, I think.
>>>
>>> Considering how new those boards look I think youre fine, some of the ones I have are baked to golden brown lol. All depends if the loop current is set properly.
>>>
>>> Jeff
>>>
>>> > On Sep 5, 2022, at 10:37 AM, Andy KN4UCL <kn4ucl at gmail.com> wrote:
>>> >
>>> >
>>> > Hey folks, I recently got my M32 up and running on i-Telex and all is good but things are getting a little toasty and I am not sure how much I need to worry.  Please see attachments - the circles I drew show where it's getting hot.  120-130F if my Harbor Freight thermometer is to be believed.
>>> >
>>> > As there is quite a bit of room in there, I was wondering if a small fan would be helpful.
>>> >
>>> > Any thoughts appreciated!
>>> >
>>> > thanks
>>> > Andy
>>> >
>>> >
>>> > ______________________________________________________________
>>> > GreenKeys mailing list
>>> > Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>>> > Help: http://mailman.qth.net/mmfaq.htm
>>> > Post: mailto:GreenKeys at mailman.qth.net
>>> >
>>> >>>> Jordan Spencer Cunningham's GreenKeys Search Tool: https://teletype.net/gksearch
>>> >>>> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>>> >>>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>> >>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>>> >
>>> > This list hosted by: http://www.qsl.net
>>> > Please help support this email list: http://www.qsl.net/donate.html
>>> > Message delivered to jeffg at junknet.net
