[GreenKeys] How hot is too hot? (Teletype 32)

[Paul Heller]

Nice machine!

A fan is an interesting idea. A small one that runs off 120vac perhaps.

I don’t have that insulator in mine and I think Wayne’s suggestion to remove it is a good one. I often leave the lid opened to let air circulate in there.

It seems like a bad design. The European machines have a relay which is much better. I don’t know how they dissipate power from the small amount of loop current when not in a call, but I’ve not noticed heat build up in them. Yes it gets pretty warm and I often worry about that but so far all is doing ok on my machine. I do power it off when going away for any extended amount of time.

Paul
W2TTY

> On Sep 5, 2022, at 4:37 PM, Andy KN4UCL <kn4ucl at gmail.com> wrote:
>
>

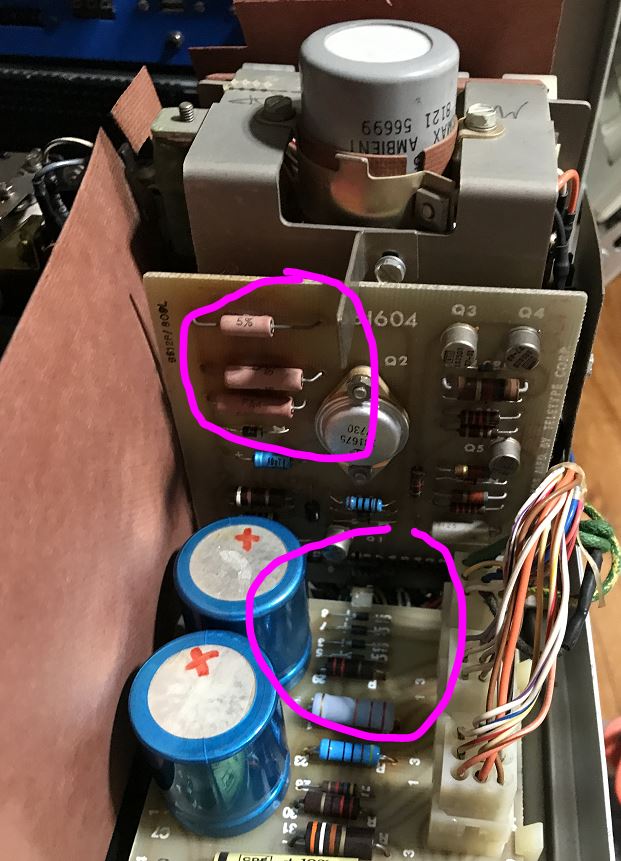

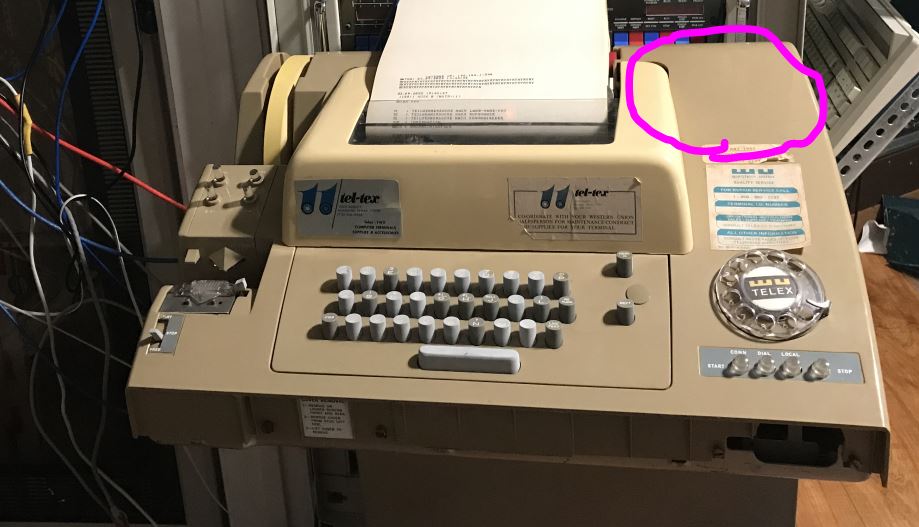

> Hey folks, I recently got my M32 up and running on i-Telex and all is good but things are getting a little toasty and I am not sure how much I need to worry.  Please see attachments - the circles I drew show where it's getting hot.  120-130F if my Harbor Freight thermometer is to be believed.
>
> As there is quite a bit of room in there, I was wondering if a small fan would be helpful.
>
> Any thoughts appreciated!
>
> thanks
> Andy
-------------- next part --------------
A non-text attachment was scrubbed...
Name: hot IMG_95x.JPG
Type: image/jpeg
Size: 78929 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220905/88a6a5f4/attachment.jpe>
-------------- next part --------------
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: hot IMG_957X.JPG
Type: image/jpeg
Size: 102121 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220905/88a6a5f4/attachment-0001.jpe>
-------------- next part --------------
>
