[GreenKeys] Houston - 28 ASR and 28 ROTR available

[Kevin H. Phillips]

I was able to make contact with this nice gentleman and picked up these
two machines yesterday afternoon.  I was able to coax my wife into going
along to help by promising to attend a plant sale with her earlier in
the day.  Collecting Teletypes often involves trade-offs, I guess.  The
gentleman is a mechanical engineer who did not have an interest in the
machines himself but recognized them as being marvelous works and
thought they were worth saving from the trash bin.  Naturally, I thanked
him profusely for saving them.


I haven't had time to examine them thoroughly but I am hopeful that the
28ASR will be "plug and play" since it is in such good shape
internally.  It does not seem dried out or rusted.  It is also
remarkably clean on the inside.  The keys have quite a bit of the
whitish "fungus" on them.  Its background was unknown other than it
apparently came from the estate of some high-ranking Naval officer.  The
cabinet does seem to have a slightly more "blue" tint than the usual
Western Union green.

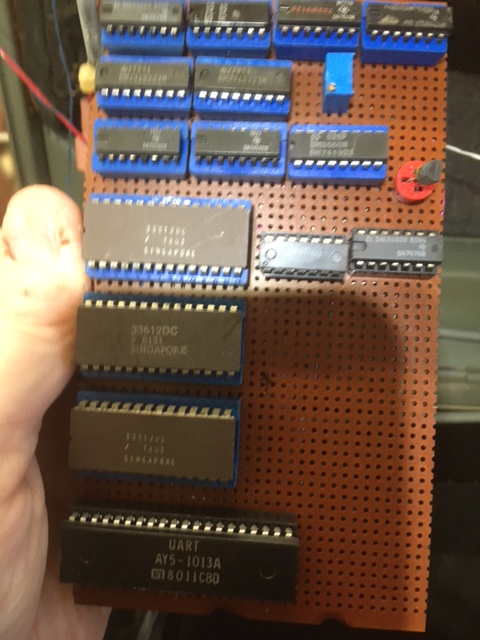

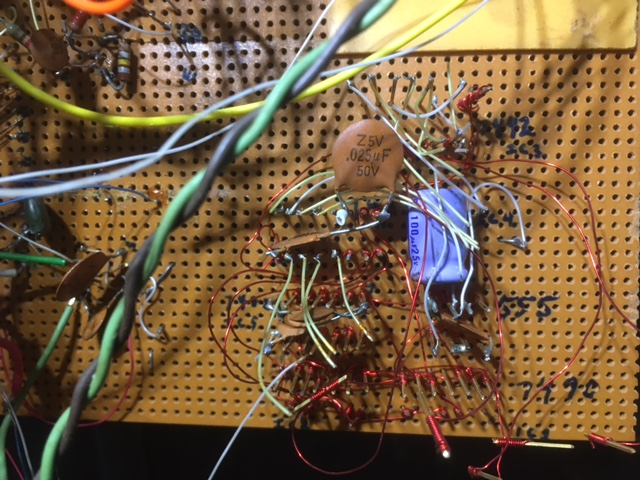

I took a few closer pictures of the electronic boards that were "under
the hood" plus the control panel.  I can't tell anything about this but
my guess is that it was perhaps designed as a built-in electronic TU.  A
lot of the wires (practically like hairs) have pulled loose so I doubt
this can be restored to its original function and also since there's no

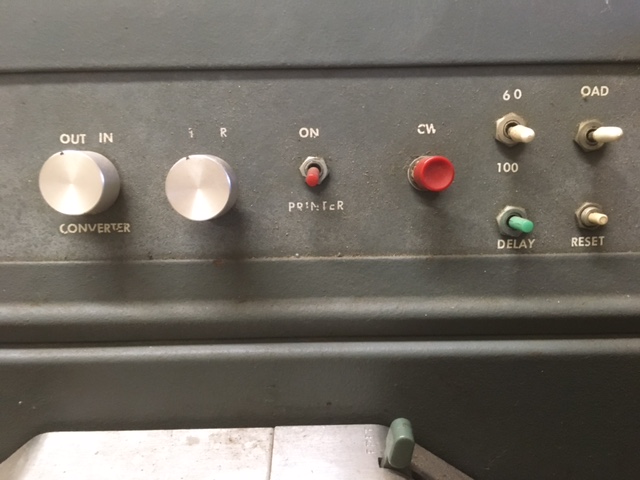

documentation on it. The control panel was very well done.  You can see
that it seems to have had some sort of speed selector for both 60wpm and
100wpm.  The switch marked "CW" is a momentary switch so I would guess

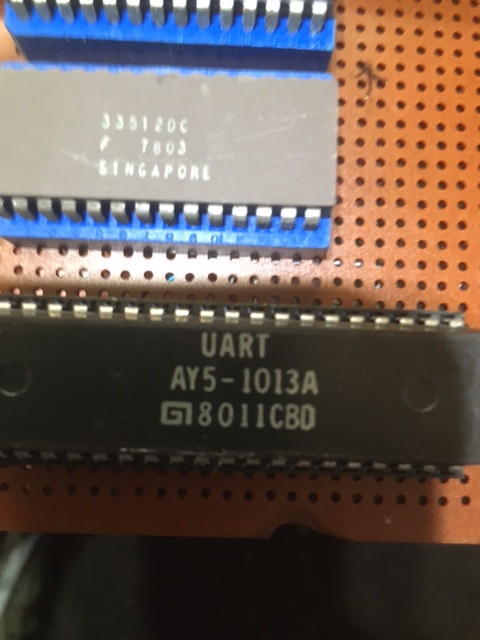

it was for CW-I.D.  On one board I can see the lettering "7490" which
makes me wonder if this was frequency-specific.


I will post more pictures perhaps later today.  I have not examined the
ROTR yet.


73


Kevin

W5TTY

On 3/12/2022 2:34 PM, Nick England wrote:
> Some photos at
> https://www.navy-radio.com/misc/28-houston/
>
> I know nothing more other than he says
> " If you know of anyone who is looking for one please send this along.
>   I'd even be willing to donate to a good cause."
>
> Contact David Jochim DJochim at lhrtech.com <mailto:DJochim at lhrtech.com>
>
> Cheers,
> Nick England K4NYW
> www.navy-radio.com <http://www.navy-radio.com>
>
