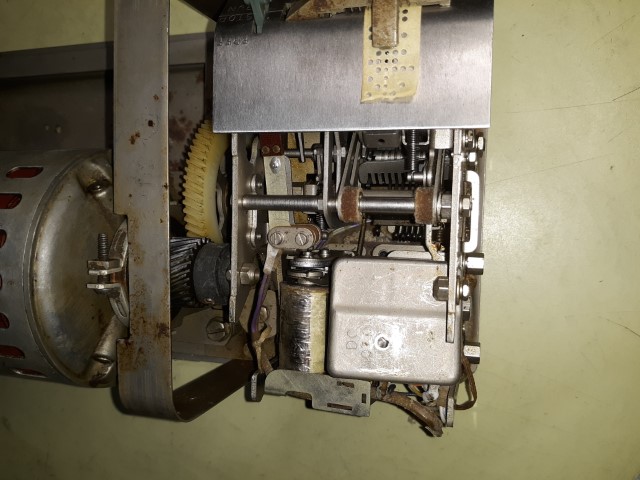

{try the picture attached]

Having been assured that the motor in this M28 tape unit is correct
(even though the leads were short), I've progressed to being able to
move tape through the machine and confirm that the "tight tape" and
"tape out" functions are working.

But no signal out. I traced the signal back to the connector that the
LXD7 plugs into, so the next step was to check the contacts in the
Signal Contact Box. I removed the nut on the top of the box and the
cover is loose, but I can't get  the cover off due to interference with
an arm of the Front Plate.




How do I get the top off the Contact Box to  check the contacts?

I see there are a variety of contact boxes used with the LXD tape
reader.  How do I know which one was used with the LXD7?

Thanks,

Duncan
K2OEQ
