Ok, I got it working (mostly). The plug that goes into my jackfield needed to be pulled out a tiny bit. Printer is locking up, tape will print to the printer, but I have to figure out why the keyboard is not keying the loop. The system just has one pair of wires for the loop, so everything under the hood should be in series. Ok. That will be a project for tomorrow.


73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/c/w2hx-channel/videos



From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> On Behalf Of W2HX
Sent: Monday, January 3, 2022 10:01 PM
To: GreenKeys at mailman.qth.net
Subject: [GreenKeys] ok, first question...

So the printer is running open even with a good/checked loop supply. The machine is an M28ASR. Here is a picture of the LESU in it (I don't know which version this is).
https://w2hx.com/x/TTY/ASR%20Pix/20220103_214634.jpg

You can see in this picture, the external loop is connected to the L J jack. I wonder if it was supposed to be in this jack. I can't recall the definitions (L J is probably loop jack?). Unfortunately I don't have any pictures of this from the last time it was running.

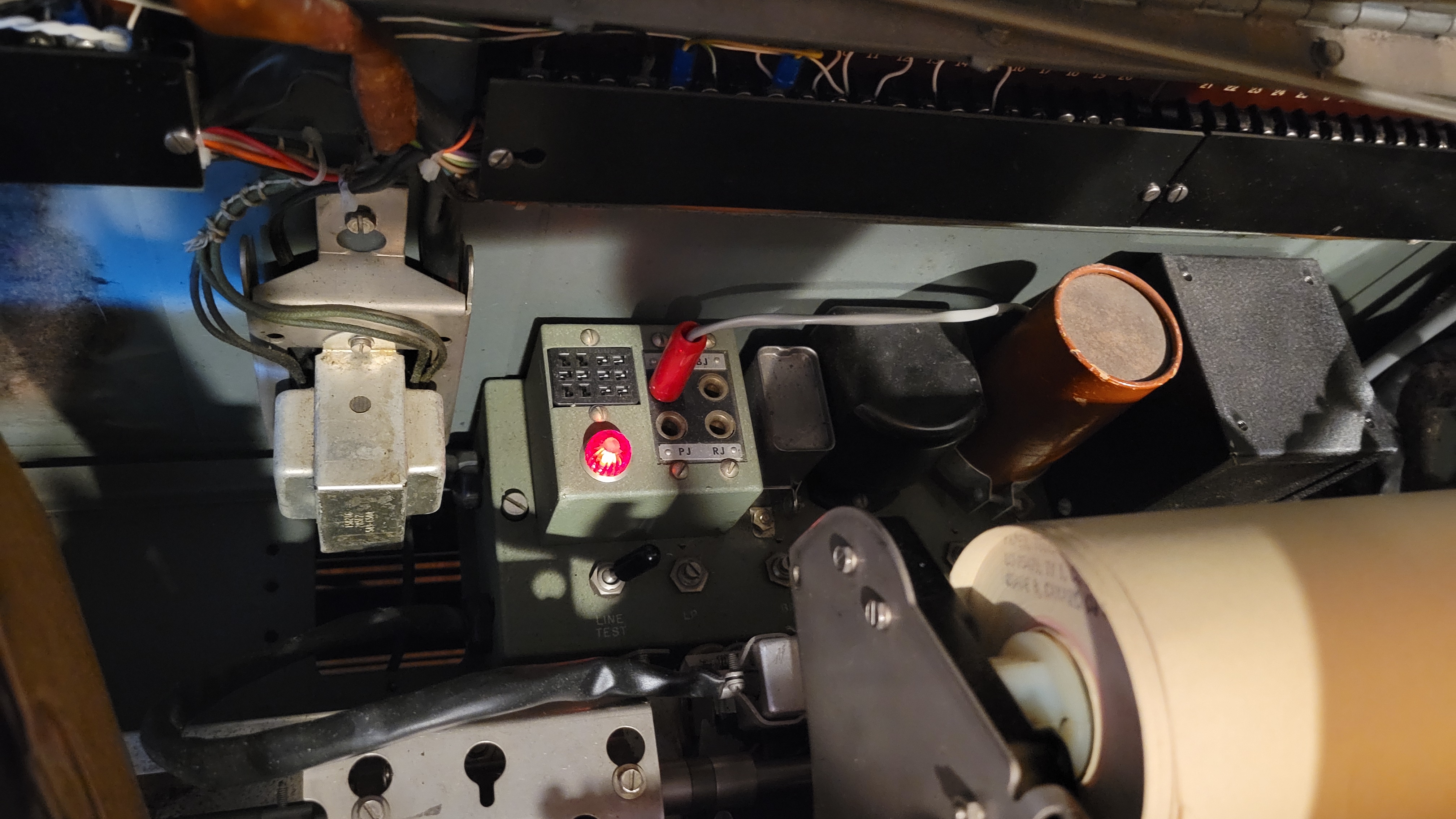

I also tried the LINE/TEST switch here:
https://w2hx.com/x/TTY/ASR%20Pix/20220103_214712.jpg
the red light lit up but the printer was still running open. I also confirmed, no voltage to any of the 4 selector magnet contacts.
I am hoping this is something simple. Wrong jack, open fuse, etc.

Any suggestions welcome.

73 Eugene W2HX
