Greenkeys,

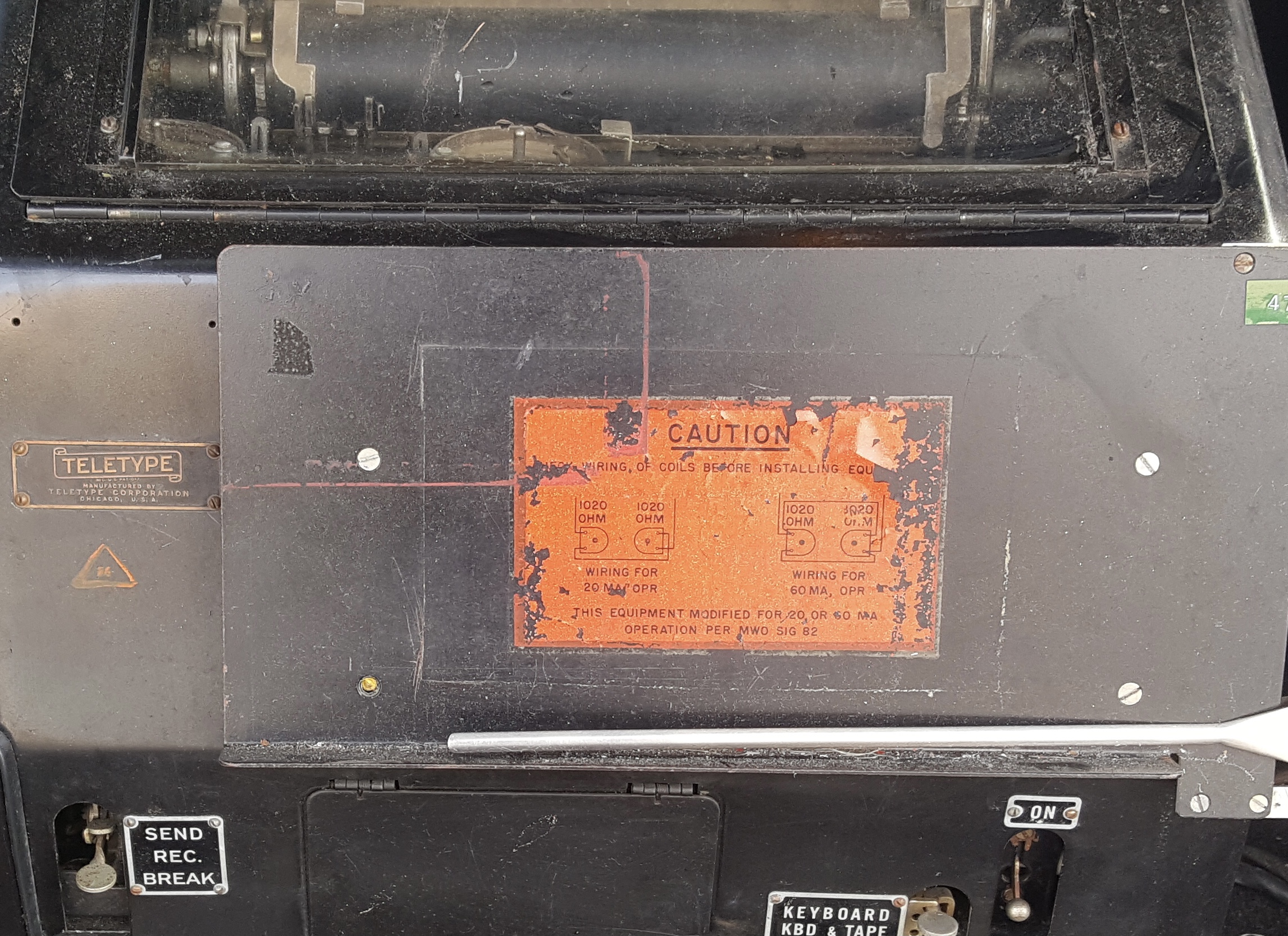

Attached is a photo of the copy holder on my Signal Corps M19 which bears
the decal Jim is talking about here:

>I have seen a military machine with pulling magnet selector and a decal on
the copy holder saying the magnet coils could be wired in series or
parallel for 20 or 60 ma operation

Does anyone know where a copy of MWO SIG 82 can be found?

Best,

Joe

On Mon, Jan 3, 2022 at 6:38 PM Jim Haynes <jhhaynes at earthlink.net> wrote:

>
> I have seen a military machine with pulling magnet selector and a decal
> on the copy holder saying the magnet coils could be wired in series or
> parallel for 20 or 60 ma operation.  Issue 6 of the Model 15 parts book
> shows only 177M magnet coil, 105 ohms so I don't know whatever happened
> with the magnets used in the Signal Corps machine.
>
> There is mention in the Teletypewriters for the Deaf book of Model 15s
> with low-voltage selector coils of 1.4 ohms resistance, operating on
> 600ma.
>
> The original purpose of the holding magnet selector, according to Walt
> Zenner who invented it, was to allow operation with a loop voltage of
> 48 volts.  The reason was to protect TWX switchboard operators who might
> accidentally contact the switchboard plugs where 130 volts could be
> lethal.
>
>         ---
>
>         "Ya can argue all ya wanna, but it's dif'rent than it was."
>         "No it ain't! No it ain't!  But ya gotta know the territory."
>                 Meredith Willson, The Music Man
