[GreenKeys] Military Dovetron in the rack with my RTTY repeater operates a polar relay

[Tom Hunter]

Paul,

I took a couple pictures this morning.

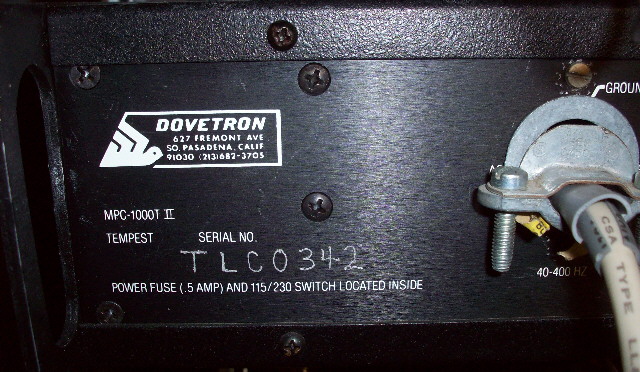

The first is the Model number of my military Dovetron.

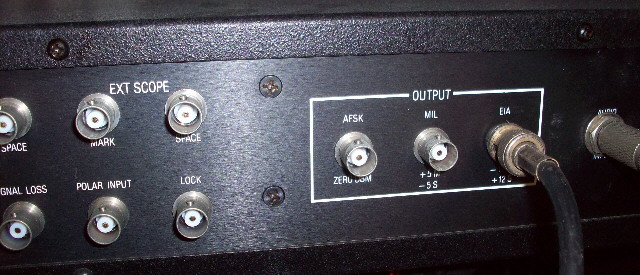

The second is of the output connectors. I chose to use the +- 12 volts for
my polar relay instead of the +- 5 volts.
This is the obvious difference from the civilian unit which keys its
internal loop supply.

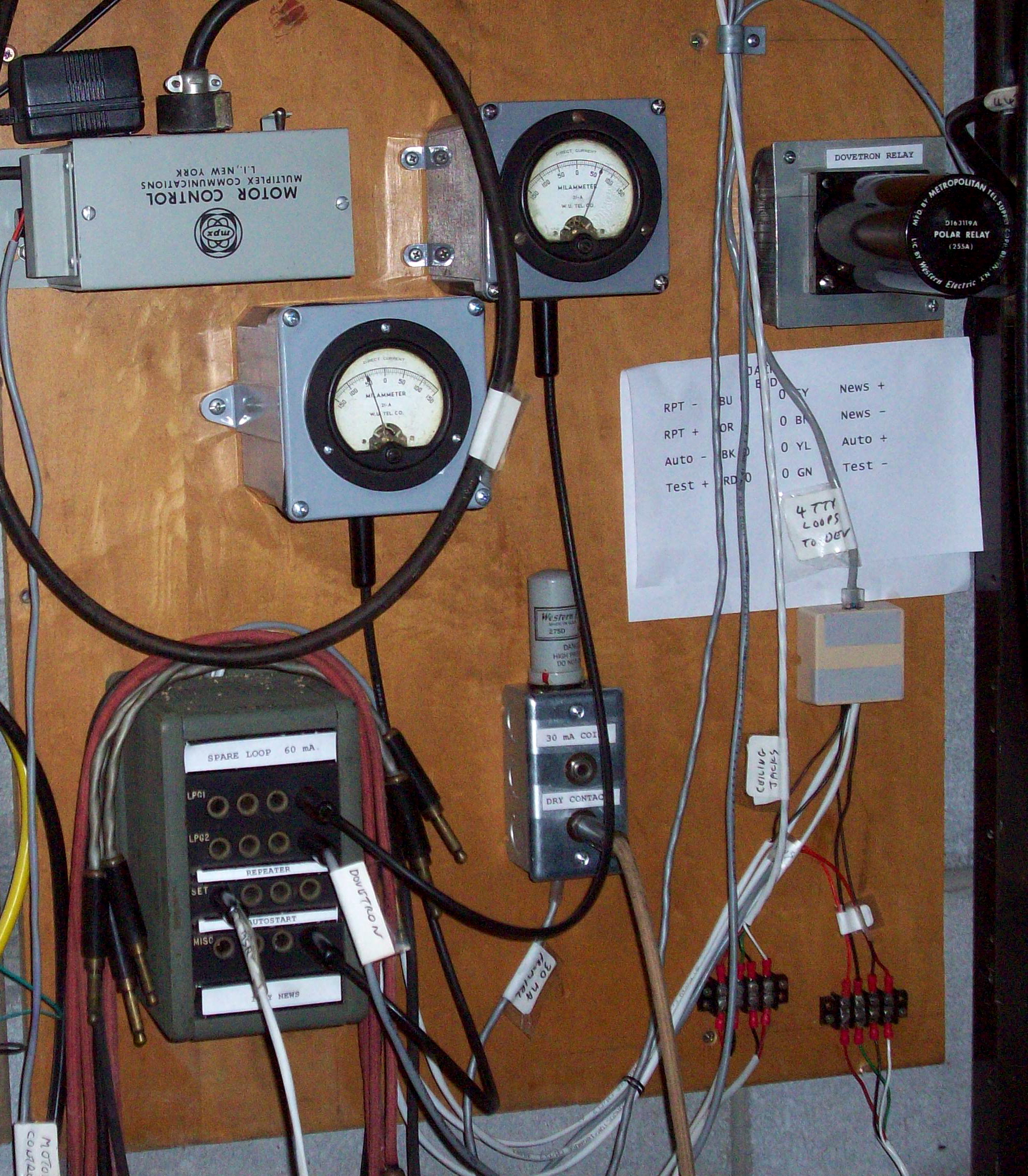

If this message does not get too big I will include a picture of my
"Teletype Wall" showing the polar relay. It is mounted so the armature
moves sideways instead of up and down so gravity does not bias it.


Tom N3CRK
